Tamiya 58267 - 1/10 SCALE RC RACING CAR CHASSIS KIT TB EV [58267]

Price:

£267.38

Brand:

Tamiya

Model:

58267

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

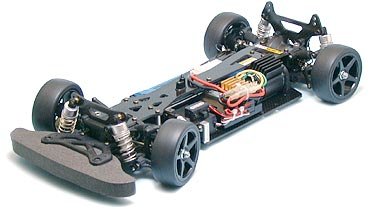

Pure Race Form Of the TB-01 Chassis Tamiya now releases their greatest performance shaft driven 4WD touring framework to date, the TB Evolution. The superb performance from the base TB-01 framework, which features a longitudinally set up motor coupled with a very dependable shaft drive, is further enhanced on this unique framework kit. Added towards leading side and straight back concerning the carbon fiber double deck framework, carbon dietary fiber damper continues to be enhance fat cost benefits and general rigidity. Additionally, to meet with all the strict setting demands of expert racers, the TB Evolution kit comes with exceedingly adjustable TRF Special Dampers, Special Ball Differentials, and more home elevators other high end components.
Package Evolution :The packaging of TB Evolution is a brand new departure from Tamiya's standard design. Simple and easy compact, this stylish package is sold with a convenient carrying handle. Furthermore, the TB Evolution package can be employed as a parts case after installation!

Needs:

Overall Length: 365mm
General Width: 184mm
General Height: 135mm
Minimal Clearance: 8mm
bodyweight completely prepared: 1,470g (including TP-S3003 servo, CPR item, motor, RC2400SP battery pack, but without body)
Wheelbase: 257mm
Tread (front side part and backside): 160mm
Chassis Material: 2.5mm thick carbon dietary fiber
Chassis Type: twin deck framework
Steering Tie Rods: split in three portions
Suspension (front part and straight back): dual wishbone
Caster Angle (f/r): 8deg./0deg.
Camber Angle (f/r): adjustable
Toe Angle (f/r): variable/2o
Dampers (f/r): TRF Unique Dampers
Drive Train: shaft driven, full-time 4WD.
Gear Ratio: 6.73:1(kit standard)
Diff. Gear System (f/r): one-way/ball diff.
Speed Controller: electronic rate controller
Tire Width (f/r): 24mm
Tread Pattern (f/r): rushing slick.
Tire Diameter (f/r): 64mm

Separately Available Products:

ELECTRICAL KITS REQUIRE: (unless reported in another way above)
