Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)  [58278]

Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)
Price:
£235.68
Brand:
Tamiya
Model:
58278
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"

The Lancia 037 Rally was made based on 1983 World Rally Championship, Group B legislation. Adapted from Lancia Beta Monte Carlo, the glass-fiber reinforced resin human anatomy finished up being developed by Sergio Pininfarina and encases a 2 liter 4 cylinder super-charged motor that boasts over 300 hp. The car's dependability and top condition assisted make it the name of providers' Champion.

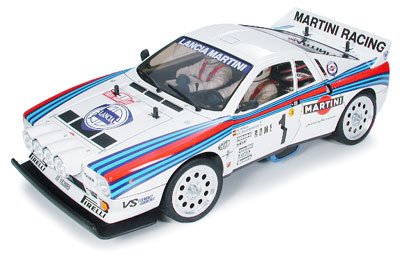

Realistic, step by step Reproduction of vehicle Body
A reproduction accurate towards tiniest components with a resin strengthened human body, the model features the Lancia's trademark 4-headlight unit. The model also includes motorist and co-driver figures, along with stickers based in the Monte Carlo rally.

High-Efficiency Belt Transmission 4WD
A hardened tub kind FRP primary frame functions while the backbone the high-efficiency 4WD gear transmission. In addition tightly fastened gearboxes within the front part and rear regarding the automobile have an overall of 9 ball bearings, minimizing drive loss and taking advantage of effectiveness.

Independent 4-wheel Suspension made with Wheel Dampers
4-wheel split double wishbone suspension for excellent road holding made with high-shock absorbing wheel dampers. Authentic semi-slick tires to truly get you psyched up for intense rally car action.

Fundamental Specifications

  • Chassis Type: TA03
  • Scale: 1/10
  • general Length: 416mm
  • General Width: 186mm
  • Overall Height: 130mm
  • Minimum Clearance: 8mm
  • Weight Completely Equipped: 1,700g (including battery pack)
  • Wheelbase: 237mm
  • Tread (front and back): 157mm
  • Chassis Material: ABS Resin Type
  • Chassis Type: Bath-tub framework
  • Steering Tie Rods: split in three portions
  • suspension system system (front side and straight back): double wishbone
  • Caster Angle (f/r): 10 deg./3 deg.
  • Camber Angle (f/r): 1.5 deg.
  • Toe Angle (f/r): 0 deg. (variable)/1.5 deg.
  • Dampers (f/r): CVA Damper super mini/CVA Damper mini II
  • Drive Train: gear driven mid-ship full-time
  • 4WD Gear Ratio: 8.51:1(OP gear usage 4.76-9.93)
  • Diff Gear System (f/r): three bevel diff
  • Speed Controller: amplifier
  • Tire Width (f/r): 27mm
  • Tire Diameter (f/r): 65mm
  • Tire Pattern (f/r): semi-slick racing
  • Type 540 engine
ELECTRICAL KITS NEED: (unless stated differently above)
  • Radio: 2-Channel with servo(s)
  • Battery: 6-cell flat with standard Tamiya connector
  • Charger: AC/DC timed or top for 6-cell battery
  • Paint: PS for Polycarbonate/TS for ABS
  • Misc. Things: Building and track equipment
