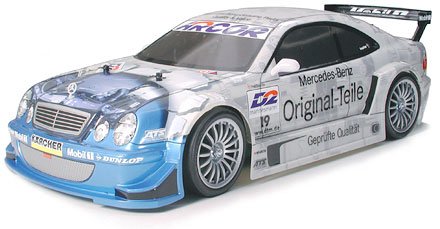

Tamiya 58279 - 1/10 TA04 Mercedes-Benz CLK DTM Original Teile  [58279]

Tamiya gift suggestions the superior, recreations kind of the favorite TA04 framework used by R/C enthusiasts of many years and quantities of experience. Made to battle, this framework includes the total ball-bearing set to lessen drive loss and employs adjustable turn buckle shafts. The high efficiency 2 gear 4WD system, the 4-wheel double wishbone suspension system, as well as the hardened resin twin deck framework linked to the TA04 are left unchanged. Merely select the body and engine of your respective option and you'll took pick in to the world of real R/C race!

Complete Ball-BearingsThe chassis comes with ball bearings not just into the drive shaft, into the steering hands additionally. This permits for smoother driving and increased durability. Repair is manufactured easier too.

Built with Turn-Buckle ShaftsThe front side and back upper arms, steering tie rods, and steering linkage all usage turn buckle shafts. The size of the shafts is modified without removal for effortless steering shaft adjustment.

2 Belt 4WDThe TA04-S framework employs a top effectiveness 2 belt drive 4WD system with an 83T spur gear. *Motor perhaps not included.

requirements

• general Length: 365mm
• General Width: 184mm
• Clearance: 8mm
• bodyweight Fully prepared: 1,517g (dimension includes TP-S3003 servo, CPR unit and RC2400SP Battery.)
• Wheelbase: 257mm
• Tread F/R: both 162mm
• Chassis Material: ABS/Polycarbonate
• Chassis Shape: Double Deck Frame
• Steering Tie Rod: 3 component
• suspension system: Front and back Double Wishbone
• Caster Angle-F/R: 10deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg
• Damper: F/R CVAMiniII
• Transmission Type: 2 Belt Mid-ship Full-time 4WD
• Gear Ratio: 7.08:1 (kit standard)
• Diff. gear system: F/R 3-Bevel Diff
• Recommended Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 26mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks
