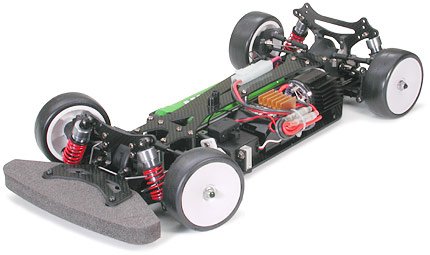

Tamiya 58284 - 1/10 TB Evolution II / Limited Edition [58284]

Price:

£268.29

Brand:

Tamiya

Model:

58284

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

alt="Tamiya 58284 - 1/10 TB Evolution II / Limited Edition" title="Tamiya 58284 - 1/10 TB Evolution II / Limited Edition"

Description

The TB Evolution evolves yet again! The pure battle sort of the TB Evolution framework, featuring its longitudinally put up engine and shaft 4WD has now reached the next step of framework development. This next degree of development means a level faster top rate, a transformation in suspension system geometry for improved control, and a far more balanced left/right roll. Forward and straight back gear situations have actually been firmly fastened with aluminum bulkheads. Chassis employs aluminum suspension system mount allowing modification of skid angle on suspension system fingers.

TB Evolution II includes not just the entire array of newly developed standard parts, but a toolbox of cutting-edge battle option elements as well!

2.5mm-thick carbon lower framework
2.0mm-thick carbon top framework
2.5mm-thick forward/rear carbon damper remain
2.5mm-thick carbon body mount remain
2.0mm-thick carbon battery pack plate
TRF dampers
Aluminum suspension system system mount
Aluminum engine mount
Aluminum propellar shaft
Comprehensive bearing set
Aluminum motor heat sink
Aluminum servo stay (brief)
Light-weight aluminum wheel hub
Front/rear universal shaft
Special ball diff.
Front one-way
Front/rear stabilizer
Specialized urethane bumper
Fiber mildew tire, medium-narrow kind a Specifications
- Overall size: 378mm
- Overall width: 187mm
- minimal approval: 5mm
- Body weight totally equipped: 1,490g (including TP-S3003 servo, CPR device, motor, RC3000MH battery power)
- Wheel base: 257mm
- Tread (front side and straight back): 163mm
- Chassis item: carbon
- Chassis sort: double deck frame
- Steering tie rods: divided in three portions
- suspension system system (front side and backside): double wishbone
- Caster angle (f/r): 8deg/0deg
- Camber angle (f/r): adjustable
- Toe angle (f/r): 0deg (variable)/3deg
- Skid angle: 1.6deg/0deg
- Dampers (f/r): TRF dampers
- Drive train: shaft driven, full-time 4WD
- Gear ratio: 6.73:1(kit standard)
- Diff gear system (f/r): ball diff.
- Speed controller: electronic speed controller
- Tire width (f/r): 24mm
- Tire diameter (f/r): 64mm
- Tread pattern (f/r): battle slick
*Limited Editionn
Motor, human anatomy, R/C equippment, and battery power offered separately
ELECTRICAL KITS NEED:: (unless claimed in another way above)
- Radio: 2-Channel with servo(s)
- Battery: 6-cell flat with standard Tamiya connector
- Charger: AC/DC timed or top for 6-cell battery pack
- Paint: PS for Polycarbonate/TS for ABS
- Misc. Goods: Building and track gear
