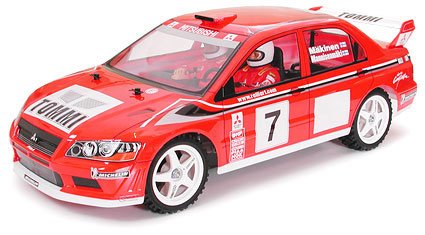

Tamiya 58286 - 1/10 Mitsubishi Lancer Evolution VII WRC (TB01)  [58286]

This device first competed in 11th occasion about the 2001 WRC season in Sanremo. Unlike the guidelines for Group the, that do not enable major deviations through the production variation, Group N allows drastic alterations including modification of motor positioning and revamping of car mechanics. Under the guidelines of Group N, Mitsubishi's completely new machine retained the exact same general type when the production variation but had its guts redesigned for pure rally race.

The TB-01 Chassis- Optimizing durability and drive-efficiency

For increased drive performance the framework employs a longitudinally create engine additionally shaft drive and a full set of ball-bearings. The sturdy, hardened resin primary and top structures are prepared shock-absorbing oil dampers and separate 4-wheel double wishbone suspension system system that delivers top managing over dust. Created for superior control, the framework features the best center of gravity for unrivaled security, and block pattern semi-pneumatic plastic tires offer superb traction both on-road and over light dirt areas.

Fundamental needs

• Chassis Type: TB-01
• Scale: 1/10
• general Length: 446mm
• general Height: 145mm
• general Width: 185mm
• Minimal Clearance: 13mm
• bodyweight completely Equipped: 1770g (including TP-S3003 servo, CPR Unit, motor, RC2400SP battery)
• Wheelbase: 257mm
• Tread (front and rear): 157mm
• Chassis Material: ABS
• Chassis Type: bathtub frame
• Steering Tie Rods: divided in three sections
• suspension system system (front and straight back): twin wishbone
• Caster Angle (f/r): 10 deg./0 deg.
• Camber Angle (f/r): variable
• Toe Angle (f/r): variable/2 deg.
• Dampers (f/r): CVA Mini Oil Dampers
• Drive Train: longitudinally mounted motor/shaft driven 4WD
• Gear Ratio: 9.91:1(kit standard)
• Diff. Gear System (f/r): three bevel diff
• Speed Controller: technical rate controller included
• Tire Width (f/r): 27mm
• Tire Diameter (f/r): 69mm
• Tread Pattern (f/r): rally block Type 540 motor included
• Kit contains full bearings

individually Available Items (required)

• RC product: Adspec GT-I or 2-channel RC system with electronic rate control
• Battery: Tamiya 7.2V Racing Pack or comparable
