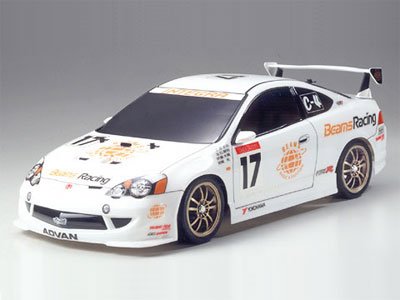

Tamiya 58293 - 1/10 RC Beams Integra (TL-01LA)  [58293]

In line with the Beams racing groups Integra Type R, durability and gratification can be expected on proven TL-01 platform. The TL-01 chassis uses a durable shaft drive system. Four wheel separate suspension and four wheel drive let the Beams Integra Type R to control virtually any condition. Needs a 2-channel radio and functions on a 7.2V battery power

Specs

Chassis Type: TL-01LA
• Scale: 1/10
• Length: 17.71 ins (450mm)
• Width: 7.28 ins (185mm)
• Wheelbase: 10.11 inches (257mm)
• Front Tread: 6.18 ins (157mm)
• Rear Tread: 6.18 inches (157mm)
• Weight: 3.62 pounds. (1570g)
• Chassis: ABS Monocoque
• Suspension: 4 wheel split
• Damper Type: Plastic coil over friction
• Drive Train: 4WD shaft drive
• Gear Ratio: 7.96:1
• Differential Type: Bevel Gear
• engine: Electrical 540
• Speed Controller: 3 action F&R Mechanical
• Wheels & Tires: 10 talked / Slick
• Physique: Clear/Polycarbonate
• Steering tie rod: 2 part
• suspension system: front part and straight back double wishbone
• Damper: friction damper
• Transmission sort: shaft drive mid-ship full-time 4WD
• Diff. gear system F/R: 3-Bevel Diff
• Tire width F/R: both 27mm
• Tire diameter F/R: both 64mm
• Tread pattern F/R: slicks
• Energy supply: 7.2V battery
• Includes longer Arm suspension system kit (la)

free Parts & Hop Up Alternatives

• 53467 - TL-01 & FF02 longer suspension system system supply set
• 53440 - On-road tuned difficult springtime set
• 53418 - TL-01 Universal shaft (2pc.)
• 53346 - TL-01/M03 fast launch battery power owner
• 53345 - TL-01/M03 toe-in backside upright
• 53342 - TL-01 speed-tuned gear set
• 53333 - Touring car tuned springtime set (brief)
• 53324 - TL-01 stabilizer set
• 53323 - TL-01 carbon propeller shaft
• 53322 - TL-01 hollow carbon gear shaft
• 53303 - TL-01 adjustable top supply set
• 53301 - TL-01 metal suspension system system shaft set
• 53300 - TL-01 turnbuckle tie-rod set
• 53295 - Tire inner foam
• 53292 - TL-01 ball bearing set
• 53280 - TA03 super low friction damper set (4pc.)
• 53267 - TA03 ball differential
• 53163 - On-road tuned springtime set
• 53162 - 4mm anodized aluminum flanged lock nuts (black)
• 53161 - 4mm anodized aluminum flanged lock nuts (silver)
• 53160 - 4mm anodized aluminum flanged lock peanuts (red)
• 53159 - 4mm anodized aluminum flanged lock peanuts (azure)
• 53144 - Touring & rally car bushing & ball connector set
• 53141 - 4WD touring & rally automobile lightweight master pins
• 53095 - 3x10mm titanium tapping screw (10pc.)
• 53056 - Pin type wheel adapter
• 50357 - 22T, 23T AV pinion gear set (simply the 23T gear inside set works utilizing the TL-01)
• 50356 - 20T, 21T AV pinion gear set (simply the 21T gear works with with all the current TL-01)
