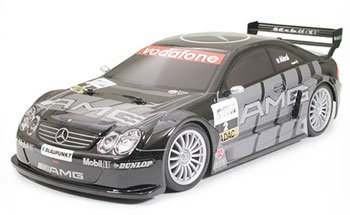

Tamiya 58296 - 1/10 RC Car CLK-DTM 2002 AMG Mercedes (TL-01 LA)  [58296]

The AMG Mercedes CLK-DTM 2002 piloted by previous F1 motorist J.Alesi, has been reproduced by Tamiya as an R/C automobile. Their based on the lightweight powerful monocoque frame shaft-driven 4WD TL-01LA framework. Long suspension system hands provide superb maneuverability additionally on somewhat rough area. Requires a 2 channel radio and 7.2V battery pack.

Specs and characteristics:

• Scale : 1/10
• Construction kind : construction kit
• Terrain usage : multi-purpose
• Drive-train : 4WD
• Drive sort : shaft
• Drive line : dog bone tissue
• Differential sort : gear
• Suspension : entirely split twin wishbone
• Steering system : direct servo
• Shock damper : friction damper
• Shock damper product : plastic
• Tire type : plastic
• Tire tread : radial
• Body product : Clear Polycarbonate
• Chassis product : plastic
• Electronic Speed Control (ESC) : maybe not included
• ESC model : technical
• LED Light buckets : no
• LED lights : no
• Engine : 540-brushed type
• Bearings : metal and plastic bushings
• Adjustable camber : fixed
• Adjustable toe perspectives : front only
• Adjustable ground approval : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable surprise angle : fixed
• Special function 1 : Chassis Type: TL-01LA
• Special feature 2 : Length: 17.71 inches (450mm)
• Special function 3 : Width: 7.28 ins (185mm)
• Unique feature 4 : Wheelbase: 10.11 ins (257mm)
• Special function 5 : Front Tread: 6.18 ins (157mm)
• Unique feature 6 : back Tread: 6.18 ins (157mm)
• Unique feature 7 : fat: 3.62 lbs. (1570g)
• Special feature 8 : Gear Ratio: 7.96:1
• Special function 9 : Tire width F/R: both 27mm
• Unique function 10 : Tire diameter F/R: both 64mm
• Requires A : 7.2 battery & charger
• Needs B : 2-channel radio gear
• Requires C : polycarbonate paint

Free Parts & Hop Up Options:

• 53467 TL-01 & FF02 Long suspension system system supply set
• 53440 On-road tuned hard spring set
• 53418 TL-01 Universal shaft (2pc.)
• 53347 3x3mm spring set screws (10pc.)
• 53346 TL-01/M03 quick launch battery owner
• 53345 TL-01/M03 toe-in rear upright
• 53342 TL-01 speed-tuned gear set
• 53333 Touring car tuned springtime set (short)
• 53324 TL-01 stabilizer set
• 53323 TL-01 carbon propeller shaft
• 53322 TL-01 hollow carbon gear shaft
• 53303 TL-01 adjustable top arm set
• 53301 TL-01 stainless suspension system shaft set
• 53300 TL-01 turnbuckle tie-rod set
• 53295 Tire inner foam
• 53292 TL-01 ball bearing set
• 53280 TA03 super low friction damper set (4pc.)
• 53267 TA03 ball differential
• 53163 On-road tuned springtime set
• 53162 4mm anodized aluminum flanged lock peanuts (black colored)
• 53161 4mm anodized aluminum flanged lock peanuts (gold)
• 53160 4mm anodized aluminum flanged lock peanuts (red)
• 53159 4mm anodized aluminum flanged lock peanuts (azure)
• 53144 Touring & rally car bushing & ball connector set
• 53141 4WD touring & rally car lightweight master pins
• 53095 3x10mm titanium tapping screw (10pc.)
• 53056 Pin kind wheel adapter
• 50357 22T, 23T AV pinion gear set (only the 23T gear within set works together with along with the TL-01)
• 50356 20T, 21T AV pinion gear set (just the 21T gear works together with because of the TL-01)
