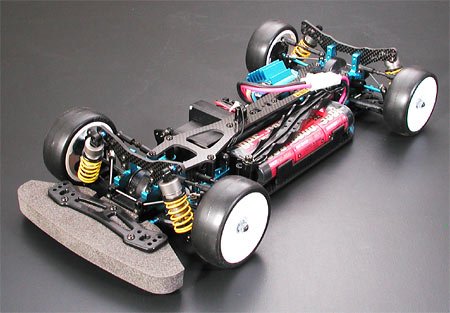

Presenting the fourth version associated with high performance TB Evolution R/C rushing vehicle. The TB Evo IV is actually developed centered on rushing performance of TB Evo III and motorist feedback, causing a chassis featuring the whole advantages of the most up-to-date R/C rushing technology including newly developed aluminum bulkhead, a sealed bevel gear cover to safeguards gears from dust and rocks on an outdoor circuit and a more durable bevel gear developed from a particular carbon based item. The model may be designed with 2.5mm thick reduced and 2mm thick top carbon frames.
About the TB Evolution IV
- Newly created aluminum bulkhead to firmly secure drive train while increasing gear performance.
- A sealed bevel gear address protects gears from dirt and rocks on an outdoor circuit.
- Features a durable bevel gear developed from a unique carbon based product.
- Aluminum propeller shaft is actually created as a 3-piece shaft, reducing rate loss brought about by friction during framework roll.
- Suspension system has been totally upgraded for improved cornering with new lightweight and more compact suspension system supply, hub provider and front/rear upright.
- Increased damper attachment settings for effortless damper modification, permitting damper to fit your driving design.
- Kit includes medium narrow race slick tires.
- Motor and human body not included
The Reedy Touring automobile Race winning TB Evolution IV is now available! The shaft driven 4WD TB Evolution rushing framework just keeps enhancing, developing brand new requirements within the R/C globe. According to information removed from genuine competition performances by Tamiya's factory team, Tamiya Racing Factory (TRF), vital elements are redesigned to produce you the very best higher end racing framework. The principal concept behind the TB Evolution IV is to enhance drive train efficiency and minimize weight across the suspension system. Drive train effectiveness is crucial for competition, especially in stock program and 19 turn spec categories. The end result is a fine-tuned superior framework that's the ultimate tool for every expert driver.
Solid Chassis Design For solid Chassis Design, both 2.5mm lower deck and 2.0mm upper deck were created from Carbon Fiber Reinforced Polymer (CFRP). To simply help expand reinforce the framework frame the TB Evo IV also includes aluminum front part and back bulkheads, allowing you to get the complete features of the enhanced drive train. These bulkheads additionally help fast access toward differentials for effortless upkeep. Kit additionally comes with 2 kinds of hub providers to pick from, allowing collection of a 2� or 4� caster angle.
3-Piece Propeller Shaft A new 3-piece lightweight aluminum propeller shaft decreases friction brought on by chassis roll. Combined with the front side one-way bearing, speed destroyed when not accelerating has additionally been paid off enhancing long-distance performance. Blue anodized aluminum engine temperature sink considerably improves temperature dissipation minimizing along side it ramifications of an overheated engine.
Option Loaded back Suspension Utilizing the standard suspension system system mount, straight back toe-angle is scheduled at 3�, but with the addition of Tamiya's up-grade suspension system mount (sold separately) it is possible to increase the selection of 6 toe-angle settings including 0.5-3�. To obtain more accurate damper settings, standard front part and rear paid off arms is reversed increasing damper pivot choices to an overall total of 5 functions.
Option Parts To Have Optimum Efficiency
| Item No. | Product Title |
| 49345 | TB Evolution IV Titanium Screw Set (limited release) |
| 53709 | Fluorine Coated Suspension Ball (8 pcs.) |
| 53712 | TB Evolution IV Suspension Mount X (Blue) |
| 53713 | TB Evolution IV Suspension Mount A (Blue) |
| 53714 | TB Evolution IV Suspension Mount B (Blue) |
| 53715 | TB Evolution IV Suspension Mount C (Blue) |
| 53716 | TB Evolution IV Suspension Mount D (Blue) |
| 53717 | TB Evolution IV Suspension Mount E (Blue) |
| 53718 | TB Evolution IV Titanium Wheel Axle |
| 53719 | TB Evolution IV Lightweight Propeller Joint Shaft (F) |
| 53720 | TB Evolution IV Lightweight Propeller Joint Shaft (R) |
| 53721 | TB Evolution IV Aluminum One-Way Ring Gear |
| 53722 | TB Evolution IV Stabilizer Rod Set |
| 53723 | TB Evolution IV Aluminum Servo Mount (Blue) |
| 53724 | TB Evolution IV 46mm Lightweight Swing Shaft |
| 53726 | Dia. 6mm Shim Set (3 types / 10pcs. Each) |
Basic Specifications
- General length: 366mm
- Total width: 189mm
- Clearance: 5mm
- Weight Fully-Equipped: 1,440g (measurement includes TP-S3003 servo, TRF2002 ESC, RC-3600HV Battery and Super Stock Type-T motor)
- Wheelbase: 257mm
- Tread: 163mm (Front & back)
- Chassis Material: CFRP
- Chassis Shape: Double-Deck Frame
- Steering Tie Rod: 3 component
- Suspension: Double Wishbone (F&R)
- Caster Angle: 4� (F) / 0� (R)
- Camber Angle: Adjustable (F&R)
- Toe Angle: Adjustable (F) / 2-3.5� (R)
- Skid Angle: 0� (F&R)
- Damper: TRF Super Low Friction Dampers (F&R)
- Drive train: Shaft Driven Regular 4WD
- Gear Ratio: 6.48:1, 6.07:1 (standard)
- Diff. gear system: One-Way (F) / Ball-Diff (R)
- Speed Controller: Electronic Speed Controller
- Tire Width: 24mm (F&R)
- Tire Diameter: 64mm (F&R)
- Tread Pattern: Slicks (F&R)
Necessary items (Available Individually)
- Body
- RS-540 Type motor
- R/C product: Adspec GT-I or 2-channel R/C system with electronic rate control
- Battery: Tamiya 7.2V Racing Pack or comparable
