Tamiya 58580 - 1/10 RC LaFerrari (TB-04)  [58580]

This brand new LaFerrari R/C car is prepared into the new Tamiya TB-04 chassis platform. The TB-04 is a 1/10 scale 4WD device which includes a drive-shaft down the middle of the framework to trigger the front and straight back gearboxes. The differentials in the gearboxes are newly created while they use a sealed gear differential system whereby the inner gears motion is handled by various viscosity differential fluids. The double-wishbone suspension system system system employs the identical "quick reversible" type which includes been utilized on the TB-03, TA-05 Version II, TA-06 and TRF (Tamiya Racing Factory) 416 and 417 World Championship products. The TB-04 also includes "IFS" (inboard front suspension system) whereby leading shocks are situated horizontally and low towards framework, to ensure that low profile sports vehicle human body forms are accurately reproduced without losing any practical scale appearance including the LaFerrari.

Item Notice

The TB-04 instructions is revised to deal with a problem aided by the positioning of this main prop shaft toward backside gear field. By after the installation procedure to the addendum the alignment issue is relieved. Note: the auto should be driven to seat all the going components for maximum effectiveness. The amended actions in addendum affect actions 3-8 both in the TB-04 professional kit and standard TB-04 framework.

Specification

• Scale : 1/10
• Construction type : construction kit
• Terrain use : on-road
• Drive-train : 4WD
• Drive sort : shaft
• Drive line : dog bone
• Differential type : sealed oil-filled gear
• Suspension : entirely independent double wishbone
• Steering procedure : bell-crank
• Shock damper : oil-filled damper
• Shock damper material : synthetic
• Tire type : rubber
• Tire tread : slick
• Body product : Polycarbonate
• Chassis item : plastic
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : yes
• LED lights : no
• Motor : perhaps not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe angles : front side and backside
• Adjustable ground approval : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : yes
• Adjustable track width : yes
• Adjustable shock angle : yes
• Unique function 1 : The framework utilizes quick reversible suspension system system fingers.
• Unique function 2 : IFS (Inboard Front Suspension) featuring push-rods.
• Unique function 3 : Length: 459mm, Wheelbase: 257mm.

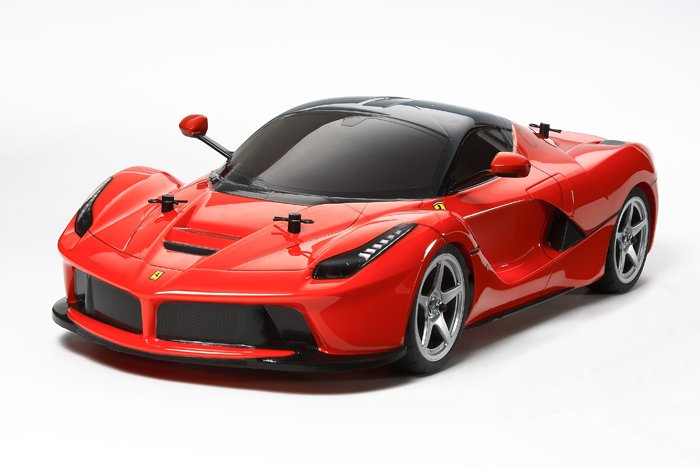

• distinctive function 4 : The polycarbonate body accurately catches the trendy and modern types of the LaFerrari, including back atmosphere outlets and diffuser.
• Unique function 5 : individual part mirror and light instance elements are included.
• Unique feature 6 : suited to separately-sold LED devices.
• Special function 7 : Includes body markings and masking stickers to be used whenever painting the model.
• Needs A : 7.2 battery power & charger
• Needs B : 2-channel radio gear, ESC, engine
• Needs C : polycarbonate paint
