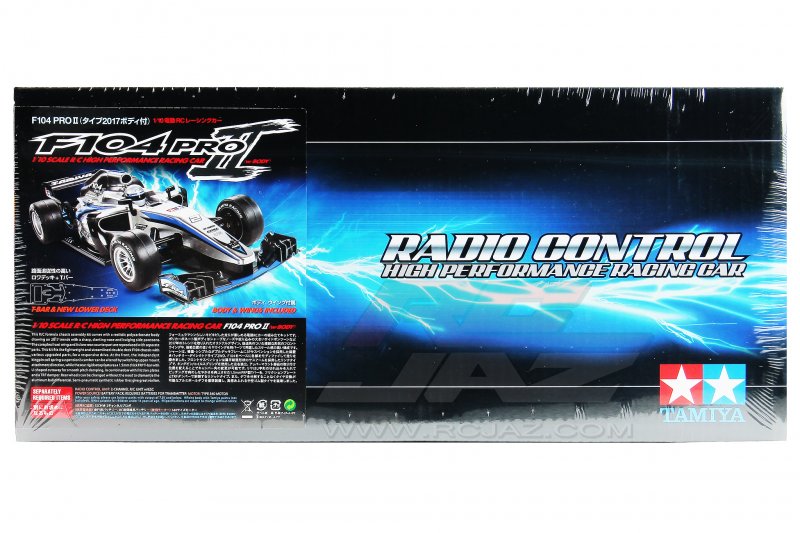

Current day Racer
This R/C formula chassis installation kit is sold with an authentic polycarbonate human anatomy drawing on 2017 styles with a razor-sharp, slanting nose and bulging side pontoons. Extra parts are included to create alternative tapered paid down parts for component pontoons. The complex front wing and its particular low rear counterpart are reproduced with separate components, due to the fact are bargeboards and induction pod.
Streamlined & Upgraded Chassis
The kit fits the lightweight and streamlined F104 chassis with different upgraded parts. In the front, the separate kingpin coil springtime suspension's camber might be changed by switching top mount attachment means, even though the rear rigid setup features a T-bar for smooth pitch damping, in conjunction with friction meals and a TRF damper. Right back tires may be changed with no need to dismantle the aluminum ball differential. Semi-pneumatic synthetic plastic tires give great realism. Includes complete ball bearings.
Specifications
Length: 440mm, Width: 180mm, Height: 88mm Wheelbase: 270mm Tread: 150mm (Front), 145mm (back) Tire Width/Diameter: 30/64 (front side), 35/64 (back) FRP Double Deck Frame Transverse motor Rear Direct Drive 2WD Ball Differential Symmetrical Steering Tie-Rod Suspension: Kingpin Coil Spring (front part), T-Bar Rigid (rear) Gear Ratio 4.16:1 (whenever utilized in combination with 25T Pinion and 104T Spur Gears Requires Type 540 Motor and Electronic Speed Controller (offered individually)
individually required Things
engine 2-Channel R/C product with ESC battery & Charger R6/AA/UM3 batteries for transmitter
