Tamiya 58672-60A - 1/14 Monster Beetle Trail 4WD (GF-01TR) (w/o ESC) [58672-60A]

Price:

£119.32

Brand:

Tamiya

Model:

58672-60A

GTIN:

4950344065936

Condition:

Brand New

Quantity:

Write a review

alt="Tamiya 58672-60A - 1/14 Monster Beetle Trail 4WD (GF-01TR) (w/o ESC)" title="Tamiya 58672-60A - 1/14 Monster Beetle Trail 4WD (GF-01TR) (w/o ESC)"

Description

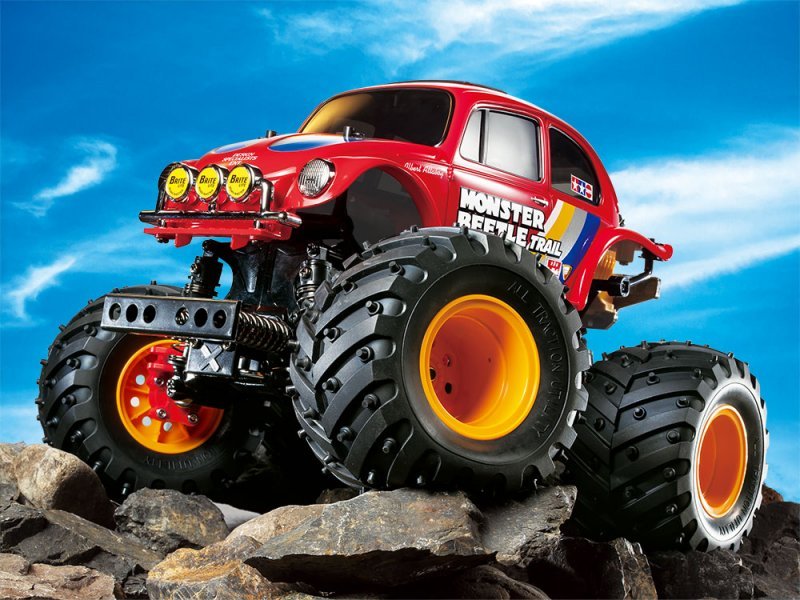

The classic Tamiya Monster Beetle is an iconic R/C kit. This variation takes the classic human body, shrinks it to a substandard scale, and mounts it on a variant GF-01 chassis called the GF-01TR!

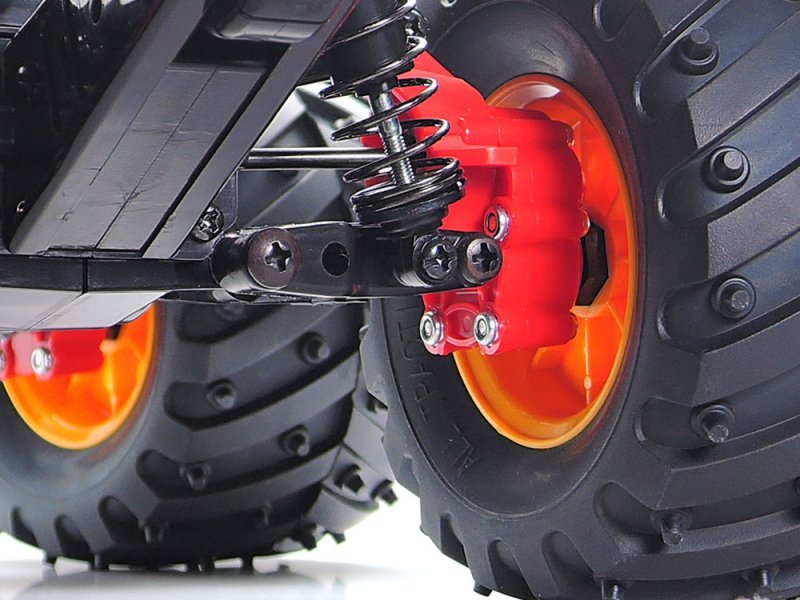

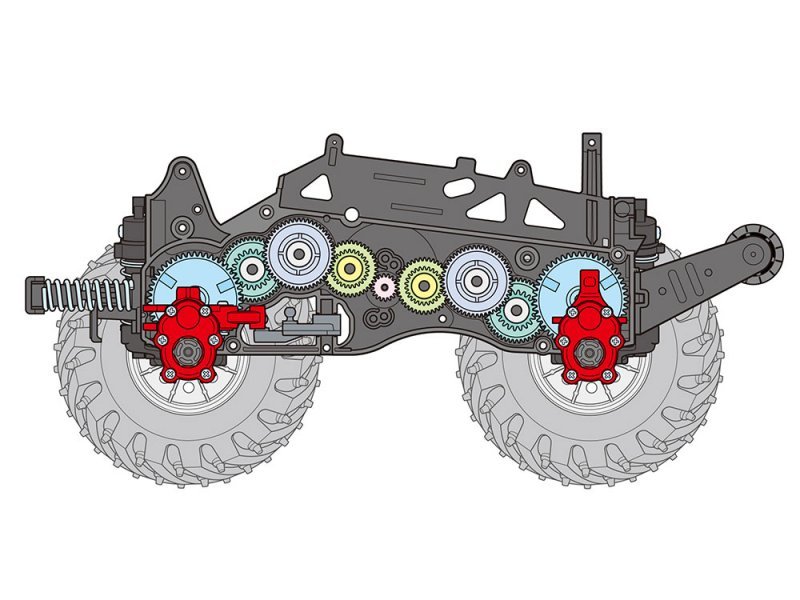

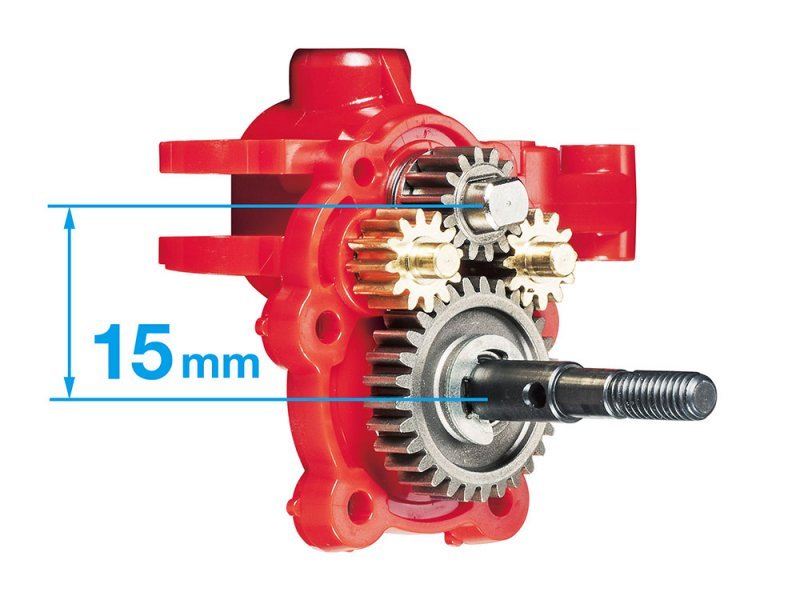

The GF-01TR fits the gear-driven GF-01 chassis with decrease gears (referred to as portal axles). This modification allows the hobbyist to raised transverse program landscapes since it lifts the beds base associated with the framework to higher clear hurdles which could high center the automobile and render it stuck.

GF-01TR Chassis:

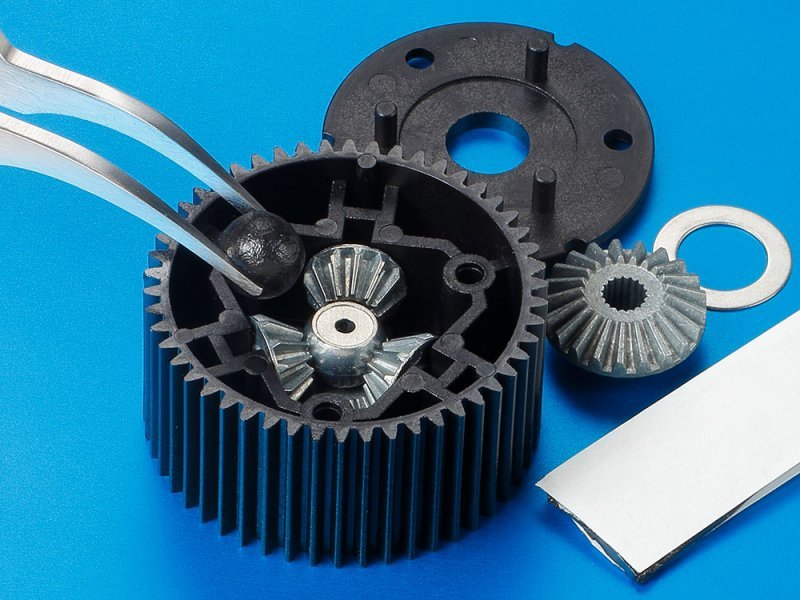

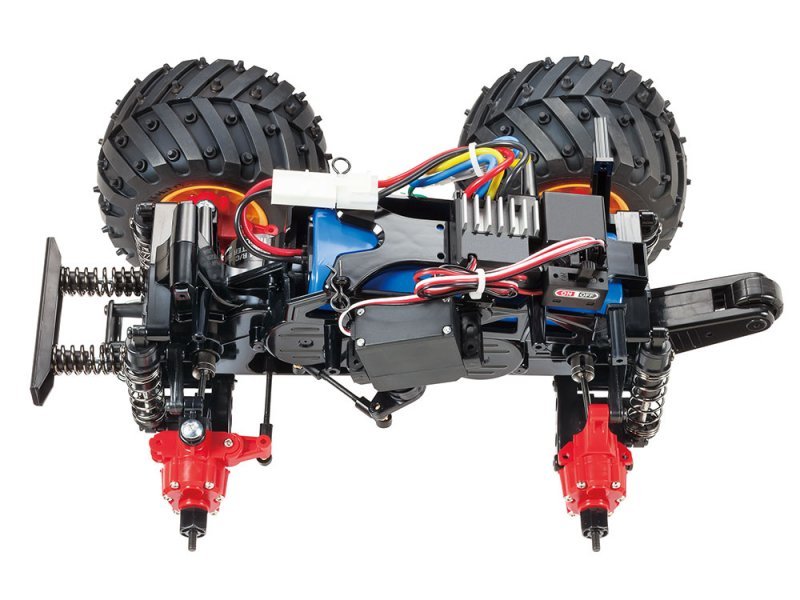

This gear-driven 4WD framework is situated around a lightweight and tough monocoque framework, with power written by the centrally-positioned engine. Decrease gears for each axle slow drive shaft rotation for enormous traction, great ground approval, so the power to undertake tough off road surface. The gearbox is sealed to safeguard from dust and debris, and incorporated into the framework; fundamental differential gears offer superb traction and durability in the event that you use included diff putty. 4-wheel double wishbone suspension system system uses friction dampers, while a 2-piece tie pole steering setup utilising the servo to the left provides excellent impact. Yellowish tires are fitted with 115mm diameter hybrid pin spike/lug pattern tires for superior cushioning and hold. The framework uses a ‘square’ setup with comparable tread and wheelbase lengths.

• 1/14 scale R/C model installation kit. Length: 333mm, width: 270mm. Wheelbase: 274mm.

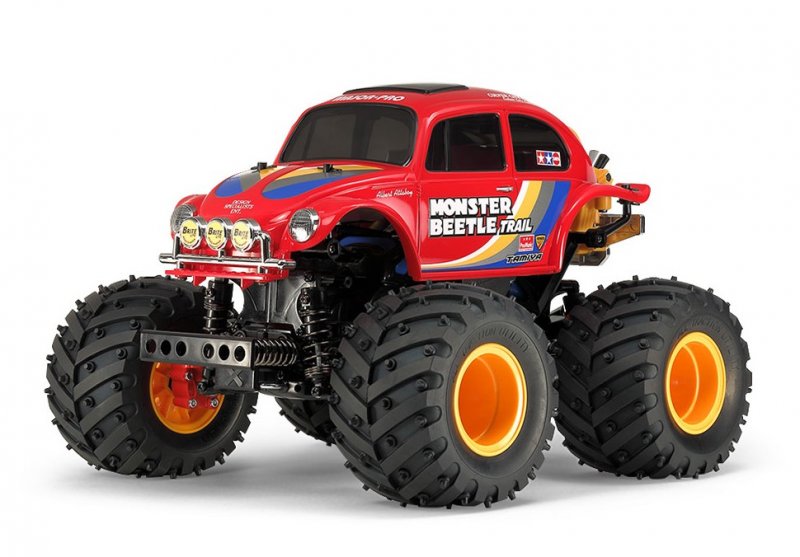

• Body is molded in red ABS Plastic. It depicts a customized Beetle with gaping fenders, triple auxiliary lights and a shortened end.

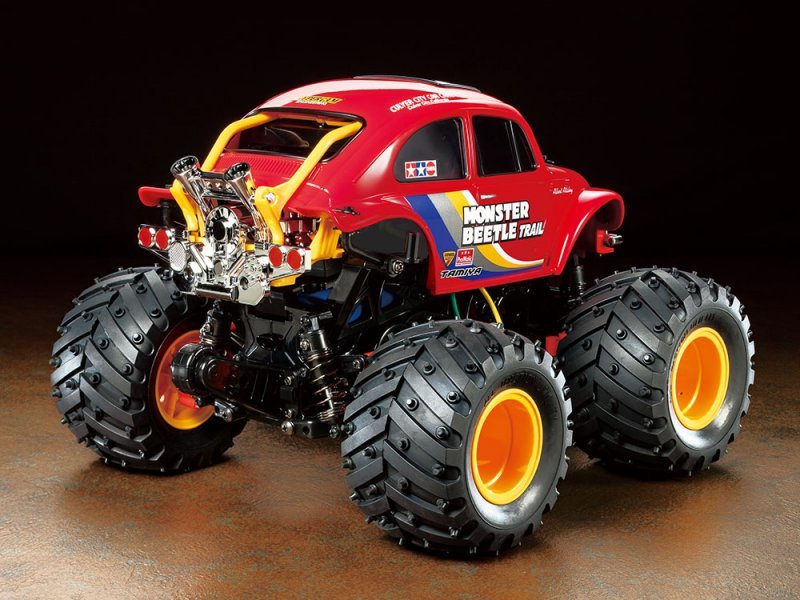

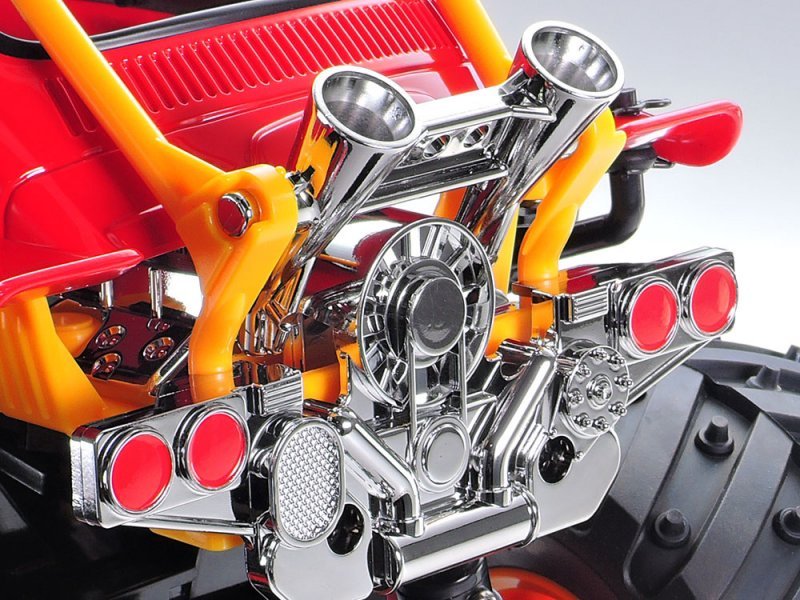

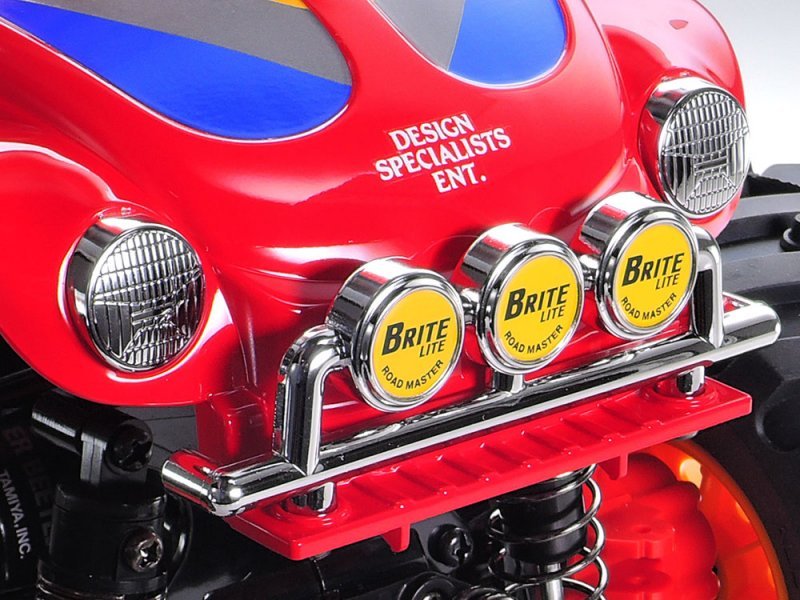

• Metal-plated elements for headlights, auxiliary lights and engine.
• The model can be obtained upon the tough, decrease gear-fitted GF-01TR variant framework.
• 37.35:1 gear ratio (aided by the kit-standard 18T pinion gear) provides great drive. The model could be compatible with 20T pinion gears (for a 33.61:1 gear ratio).
• Yellowish tires are complimented by 115mm diameter hybrid pin spike/lug pattern tires for superior padding and hold.
• Includes 540-type motor.
• ESC maybe not included
• needs:2-Channel broadcast, servo, 7.2-7.4volt circular form battery power & appropriate charger, and Tamiya TS paints.

Specification:

Adjustable Gear Ratio : Yes
Bearings : plastic bushing
Body Material : ABS Plastic
Body Stickers : Included
Chassis Material : ABS Plastic
Chassis Type : GF-01 TR
Construction Type : Assembly Kit
Differential Type : Gear
Drive Type : 4WD
Electronic Speed Control (esc) : not included
Motor : Brushed 540 Type
Requires A : • requires: 2-Channel broadcast, servo, ESC, 7.2-7.4volt circular type power packs & appropriate charger, and Tamiya TS paints.
Scale : 1/14
Shock Damper : Friction damper
Suspension : Fully Independent Double Wishbone
Terrain utilize : Multi-Purpose
