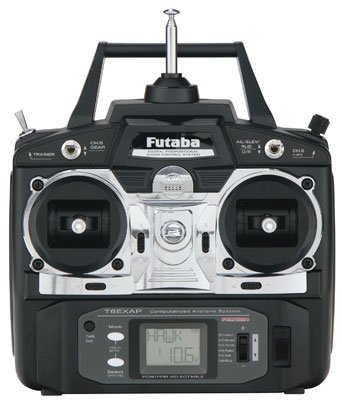

Futaba 6EXAP 6-Channel FM 40MHz/ R136F/ 4xS3003  [6EXAP_C1]

QUALITIES:

• Aileron, Elevator and Rudder double cost switch - employ this modification to flip between two aileron, elevator and rudder control throw settings. The tosses might be arranged but prefer, but most of the time, whenever switch is up the throws are greater (higher-level) the moment the switch is down the throws are less (good deal). This switch also flips between exponential expenses (if used).
• Flap control dial/Channel 6 - This dial runs the servo associated with channel 6 inside the receiver when your model has flaps here is the control accustomed run them.Aileron/elevator control stick -Mounting point for optional neck strap.
• Trim levers (all) -Used to maneuver the basic or center host every single servo as labeled inside diagram.
• Asking jack - Port for billing the transmitter batteries utilising the included battery power charger.
• On-off switch
• DATA INPUT lever - accustomed replace the values using this various functions exhibited regarding LCD display.
• Liquid-crystal display (LCD) - shows development modes and values entered.
• MODE key - frequently scroll through and show the ten or eleven(PCM) different functions.
• SELECT key - regularly expose the values the present function.
• Throttle-cut switch - to work well with the throttle-cut function, lower the throttle stick entirely, then drive the throttle-cut key to totally close the carburetor and shut the motor.
• Throttle/rudder control stick - operates the servos connected to channel 3 (throttle) and channel 4 (rudder) in the receiver.
• Trainer switch - runs the trainer functions. To exert effort as a trainer switch the transmitter should be attached with another transmitter via. a trainer cable (available individually).
• Retractable landing gear switch/Channel 5 - modification runs the servo linked to channel 5 in to the receiver if the model has retractable landing gear this may be the control used to expand and retract the gear.
• Antenna - Radiates signals towards the receiver. Never travel a model without entirely expanding the antenna or possibly you'll create interference to a lot of other modelers and decrease functional indication selection of the transmitter. The antenna might be removed and changed with another whenever it is unintentionally broken.

INCLUDES:

• Futaba 6-Channel 6EXAP transmitter
• Futaba R136F Receiver
• Four Futaba S3003 Servo
• Change Harness
• Handbook

SPECS:

Transmitter

• T6EXAP Transmitter with programmable mixing and 6-model memory.
• Transmitting on 40 / 72 MHz musical company.
• Os: 2-stick, 6-channel system
• Modulation: FM(PPM) and PCM
• Power supply: 9.6V NT8S600B Ni-Cd battery power or 12V alkaline battery power pack
• Current drain: 250mA

Receiver

• R136F slim musical organization, FM 6 channel receiver.
• Getting on 40 / 72 MHz musical organization.
• Type: FM, Dual conversion/FM, Solitary transformation
• Intermediate frequencies: 455kHz, 10.7MHz/455kHz
• Power requirement: 4.8V or 6V
• Present drain: 9.5mA @ 4.8V
• Size: 1.31 x 1.98 x 0.71" (33.4 x 50.3 x 18.1mm)
• fat 0.98oz (27.8g)

Servo

• S3003 standard servo with mounting gear and servo supply assortment
• Control system: Pulse width control,1.52ms neutral
• Power requirement: 4.8 or 6V (from receiver)
• Production torque: 44.4oz-in [3.2kg-cm] @4.8V
• Running rate: 0.23sec/[email protected]
• Size: 1.59x0.78x1.41" [40.4x19.8x36mm]
• Body fat: 1.3oz (38.0g)
