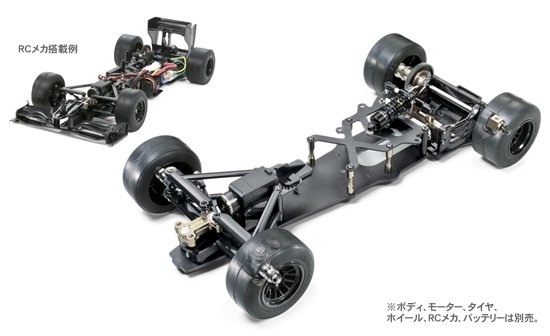

Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1  [84203]

• This brand new kit is dependant on the F104 chassis. It's designated the F104X1 framework plus it's a tiny edition launch. It absolutely was designed to further enhance traction and cornering performance. It features newly created elements including a roll damper as noticed in numerous 1/10 and 1/12 scale pan cars and a whole new X-shaped top deck. This restricted version kit in addition sports special-colored aluminum components.

NEW Specs and characteristics:

• X-Shaped FRP top deck (completely new part)
• Aluminum damper mount (Titanium color) (new part)
• Rear axle shaft counter fat fitted in with ball bearings (black color)
• F104 carbon strengthened gear situation (fresh part)
• Aluminum Roll damper (black colored colored color) (new part)
• Item 54129 TB-03D Aluminum motor Mount (new color)
• Item 54158 F104 Aluminum Diff Housing Set (brand new color)
• Item 54159 Aluminum Horn for Hi-Torque Servo Saver (F104) (brand new color)
• Item 54202 F104 Aluminum Upper Suspension Mount (brand new color)
• Left Rear Wheel Hub (brand new color)

Specs and Features:

• Link-type front side suspension
• Front kingpin coil springtime split suspension
• Direct drive solid back axle transmission
• Ball differential
• Accommodates Tamiya foam or synthetic tires
• Fits F104 unique F1 body shells (offered separately)
• Adjustable front side camber
• Adjustable front and back trip height

Other Included Option Parts:

• Item 53599 Fluorine Coated 5mm Aluminum Ball Nut
• Item 53901 TRF Special Damper (F103GT) (Black)
• Item 54154 F103 Carbon Reinforced Front Upright
• Item 54160 F104 Titanium Coated King Pin
• Item 54161 F104 minimal Friction Suspension Ball Set
• Item 54222 F104 High-Traction T-Bar
• Touring automobile Quick Spring (Black)
• Low Friction 5mm Adjuster
• 3x35mm Aluminum Turnbuckle Shafts (Ebony)
• 4mm Aluminum Lock Nuts (Ebony)
• 4mm Aluminum Flanged Lock Nuts (Black)

brand new specification highlights and details:

• Roll Damper & Upper Deck Pitch motion is managed by an individual TRF Damper and roll motion is handled separately by a brand new Roll Damper. The Roll Damper links on FRP Upper Deck, which features a fresh X-shape for better roll traits, leading to improved traction.
• Counterweight The trunk shaft counterweight is set up involving the gear example as well as the staying back wheel to optimize balance and enhance rear wheel traction. This freewheel counterweight comes with a ball bearing and does not affect the automobiles acceleration.
• New durable gear situation Compared to the standard fiberglass-reinforced parts, this Carbon Reinforced Gear situation features superior strength and improves the effect with this Roll Damper.
