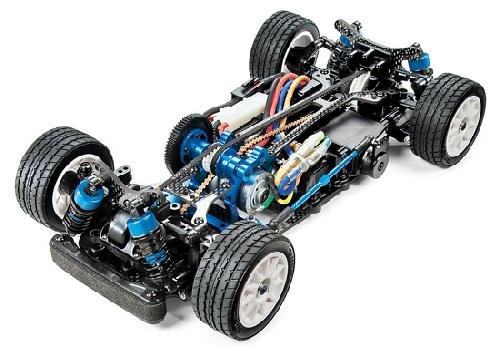

Tamiya 84255 - 1/12 RC TA05 M-Four Chassis Kit - TA05 M-4  [84255]

• The Tamiya TA05 framework was a popular mid-level 4WD touring car platform since 2005. Tamiya has integrated its proven components into a new, unique 1/12 scale R/C framework design. This framework combines the TA05 2-belt driven 4WD drivetrain with a 210mm wheelbase (general framework length: 292mm) possesses a carbon-fiber dual deck design. Also features an aluminum engine mount which holds leading mid-ship motor and spur gear. The TA05 gearboxes consist of oil-filled gear differential products (37T) in addition to the suspension system makes use of M-chassis elements such as for instance suspension system arms, universal shafts, and aluminum dampers. Separate suspension system mounts are accustomed to enable effortless suspension system system toe-angle alterations as noticed in a lot of Tamiya's touring automobile platforms. The steering setup features durable aluminum elements for exact control. This framework is made for use with Item 55105 Tamiya LF Battery LF1100-6.6V Rushing Pack (M-Size) Note: Battery is not imported in to the United States Of America. See below for substitute appropriate battery packages. (TBA) The TA-05 M can be suitable for existing M-Chassis systems that meet the 210mm wheelbase.

Specs and characteristics:

• M-chassis suspension system fingers and front part uprights
• 4WD totally split wishbone suspension
• Separate suspension system mounts make it possible for toe-angle modification.
• Universal drive shafts
• TA05 oil-filled gear differential products enable a number of diff settings
• Aluminum dampers are set up to a durable 3mm thick carbon-fiber damper remain
• TA05 front one-way and direct coupling is established. (Available individually)
• Blue-anodized aluminum engine mount holds
• 380 motor
• 2-belt drivetrain design utilizes an 18T center pulley
• 2.25mm thick reduced and 2mm dense 2-piece top deck.
• Battery pack and R/C product jobs are interchangeable to modify framework fat distribution.
• This framework works with current M-chassis systems (quick wheelbase) like Item 50795 1/10 R/C Mini Cooper Racing parts of the body Set.
• Utilize Item 55105 Tamiya LF Battery LF1100-6.6V Rushing Pack (M-Size) once the power. Note: Battery isn't brought in into the USA.
• Substitute battery power (TBA)
• Item 51237 Suzuki Swift Super 1600 Wheels (4pcs.) are included. Tires can be obtained separately.
• These existing choice components are about for customization:
• Item 53833 TA05 Front One-Way Device
• Item 53877 TA05 Front Direct Coupling
• Item 54212 M-Chassis 3x37mm Titanium Coated Suspension Shafts (2pcs.)
• Item 54267 M-05 & M-06 Aluminum Rear Upright (2.0)

ELECTRIC KITS REQUIRE:
(unless reported in a different way above):

• Broadcast: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or top for 6-cell battery
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Things: Building and track equipment.
• Speed Controller: electronic rate controller
