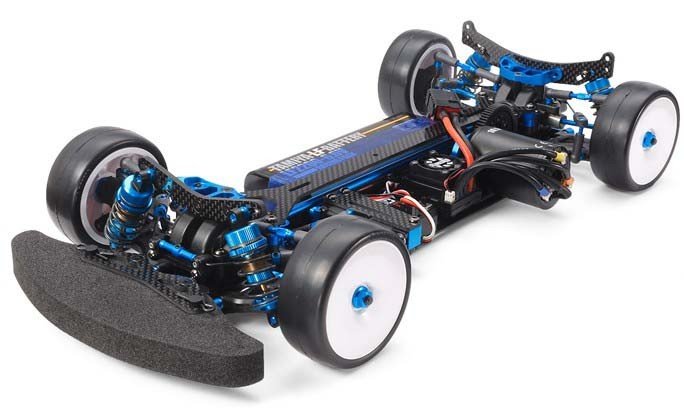

Tamiya 84427 - 1/10 TB EVO.6 MS Chassis Kit  [84427]

Limited form of 1/10 Scale On path 4WD rushing automobile framework kit,The TB EVO.6 MS

This high-end shaft-driven 4wd framework has 2mm dense aluminum reduced and carbon fiber upper decks, its double-deck frame supplying controlled chassis flex on high-grip areas such as carpeting. The motor has a left-side mounting point, with a newly- produced aluminum center bulkhead that guarantees spur and miter gears give enduring, smooth rotation. Itis additionally laden with high spec elements such as for example TRF418 suspension system system hands, brand new aluminum damper stay mounts, a lightweight aluminum propeller shaft, plus easy-to-adjust solitary piece stabilizer stoppers.

• Ready to construct electric radio control model kit
• Circuit framework with efficient shaft driven 4WD and excellent managing
• Front dircet drive, rear gear differental unit setup
• Double deck setup with aluminum paid down and carbon soluble fiber upper decks
• Minimal center of gravity yet minimized experience of track surface
• Length: 370mm
• Width: 185mm
• Wheelbase: 257mm

Highlighted components included:

• Aluminum Lower Deck
• Carbon Fiber Upper deck
• Aluminum Center Bulkhead
• Aiuminum Propeller Shaft
• Aluminum Bearing Holder
• AIuminum Spur Gear Holder
• Aluminum Damper keep Mounts
• 42295 TRF419 Stabilizer Stopper
• 42216 44mm Double Cardan Joint Shaft 2pcs
• Aluminum Rear Universal Shafts (2pcs.)
• TRF4I8 Suspension Hands
• Carbon Damper Stays (F/R) for brief Dampers
• Aiurninum Brief Dampers (Big Bore)
• 54592 TB-04 Front Direct Coupling
• 54543 Aluminum Cup Joints forTB-04 Gear Differential device (Lorig&Short)
• 54540 Steel Bevel Gears for TB-04 Gear Differential Product
• 54250 3x42mm Aluminum Tumbuckle Shaft (2pcs.)
• 54249 3x32rnm Aluminum Tumbucltle Shaft l2pcs.)
• 53642 5mm Aluminum Ball Connector (Blue)
• 53640 5mm Aluminum Ball Nut (Blue)
• 51000 Hi-Torque Servo Saver (Ebony)
• F/R Stabilizers
• Aluminum Suspension Mounts
• Comprehensive Ball Bearings
• Front Direct Drive, straight back Gear Differential device Setup

required Products:

• BROADCAST DEVICE: 2-CHANNEL RC DEVICE w/ESC ENERGY SUPPLY: BATTERY PACK
• BATTERIES FOR TRANSMITTER
• 540 TYPE MOTOR
• PINION GEAR: 06 MODULE PINION GEAR
• WHEEL: 24mm, OFFSET 0
• TIRE: MEDIUM-NARROW TIRES (24mm)
• TIRE INSERTS: MEDIUM-NARROW (24mm WIDTH)
• TIRE INSERTS SUCH AS lTEM 53434, 534354, etc.
• BODY: TB-04, TA06 AND TA05 SYSTEMS
