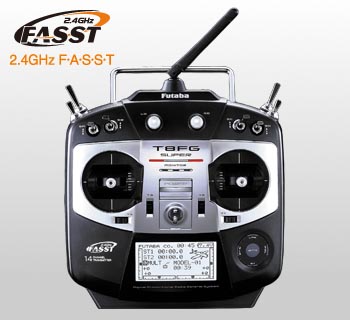

Futaba 8FG Super 2.4GHz Computer Systems  [8FGSuper]

"Super-sized" with increased companies - and CGY750 gyro support!

The initial 8FG have already been top 2.4GHz radio value available. Now, for the same expense, the 8FG Super provides six additional stations plus unique software with menus tailored to Futaba's super-fast CGY750 gyro. Recommended by Bobby Watts, Matt Botos and Kyle Stacy, it's the initial radio that essentially helps flybarless helicopters. And yes it's perfect for a lot of the applications, too...a smart option for ANY forward-looking flier.

Features:

• Expanded with 14 total transmitter sites X 12 proportional and two switched.
• Included R6208SB receiver's PWM (Pulse Width Modulation) channels support around 8 standard analog or digital servos and yes it handles equally as much as 18 networks whenever combined with an S.Bus system.
• Gyro menu supports 3-axis gyros and it's also completely tailored towards the CGY750.
• User menu allows pilots to personalize and show frequently employed functions.
• VPP (adjustable Pitch Propeller) compatibility may be set to three conditions for throttle and pitch curve.
• Swash trim may be modified from swash display.

Continued through initial 8FG:

• SensorTouch™ development maximizes navigation simpleness.
• Numerous factory-defined mixes enable you to prepare like a professional.
• Minimal latency and cutting-edge 2048 quality combine for fast, accurate Real-Time Response™.
• Accepts 32MB to 2GB SD memory cards* include equally as much memory when you need.

*SD memory maybe not included

Overview:

• 12 proportional channels
• 2 switched sites
• Built-in FASST 2.4GHz design
• 2048 quality
• SensorTouch™ programming
• Airplane, heli & glider pc software
• 20-model internal memory, endless with sdcard
• Compatible with 32MB to 2GB SD Memory Cards*
• Mode 1-4 selectable
• Customizable particular menu
• Immediate use of timers, channel mode & model selection
• 2-touch use of system, linkage & model menus
• Assignable switches/functions
• 10-character user & model naming
• Model choose, copy & reset
• Information transfer
• All-channel & battery power fail-safes
• Sub-trims, servo reversing, double rates, expo & EPA with split limitation settings
• Digital trims & memory, with step or percent display option
• 128 x 64 backlit LCD w/auto-off timer, normal/large timer display alternatives, adjustable comparison & brightness
• Servo period w/bar graph shows
• Model & system timers
• Trainer system w/channel/function alternatives
• Sticks w/ball-bearing gimbals, size & stress adjustments
• Stick calibration menus

Airplane Features:

• 7 wing kinds
• 5 programmable mixes, plus:
• Aileron/Rudder mix
• Rudder/Aileron mix
• Rudder/Elevator mix
• Snap roll
• petrol mix
• 5-point throttle bend
• Throttle wait
• Gyro Function w/up to 3 gyro expenses
• Motor menu w/speed adjustment
• adjustable pitch prop support

Glider Features

• 10 wing types
• 5 programmable mixes, plus:
• Aileron/Rudder mix
• Rudder/Aileron mix
• 5 conditions w/delay per channel
• 4 electronic blending networks
• Gyro functions w/separate costs for 3 gyros
• motor menu w/speed adjustment

Helicopter Features

• 6 swash dish sorts
• 5 programmable mixes, plus:
• 4 swash mixes (aileron/elevator, elevator/aileron, pitch/aileron & pitch/elevator)
• 3 throttle mixes (to aileron, elevator & rudder)
• 5-point throttle & pitch/rudder combining
• 5 conditions w/delay per channel
• 5-point throttle & pitch curves
• Throttle hold
• Hovering throttle & pitch
• High/low pitch prices
• 3-Axis gyro assistance with 3 different rates
• Governor functions

R6208SB 2.4GHz FASST 8/18 Channel S.Bus High-Voltage Receiver

• The 8FG Super's R6208SB receiver takes many batteries, from 4-cell NiCd and NiMH packs to 2S life time and LiPo packages, without any regulator needed. PWM (Pulse Width Modulation) stations provide support for approximately eight standard analog or electronic servos. Utilising the S.Bus slot, it handles around 18 systems and makes incorrect servo-channel hookups impossible. The R6208SB furthermore features a high-speed mode that delivers ultra-fast framework rates on channels 1-6.
• High-speed mode can be acquired simply on channels 1-6 and needs making use of electronic (including brushless electronic) servos. Web sites 7 and 8 which run simply in normal mode could possibly be constructed with either analog or digital servos.
