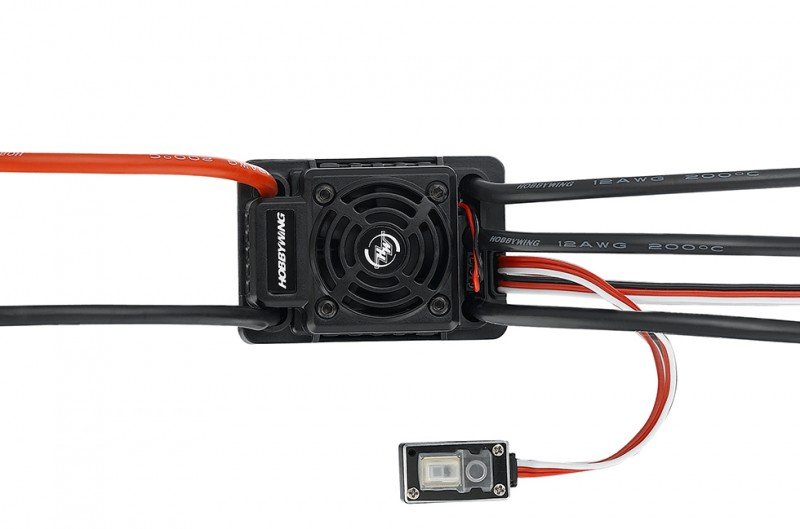

HOBBYWING EzRun WP SC8 - 81010400  [HW-81010400]

High Reliability & Durability

Reliable equipment along side higher-level software technology allows
the EZRUN WP-SC8 never to only offer high power production and also
overload protection of ESC circuit.

Highly relevant to any or all Weather Conditions

The waterproof and dust-proof design allows the MAX10 to be employed in virtually every weather conditions
without dilemma of harm triggered on ESC from water or dust.

Great Flexibility & Versatility

With the strong torque and exemplary manufacturing, the EZRUN WP-SC8 can
absolutely attract the ability hungry demands that professional motorists require.
The severely adjustable parameters of ESC enables motorists to take pleasure from
smooth throttle impact as soon as the throttle/brake
linearity is utmost required.

Integrated BEC

The integral switch mode BEC with a maximum production of 6Amp and voltage
of 6V get this ESC suitable for various servos.

Effective Cooling System

Hobbywing patented heat-conductive copper club address regarding power board of
the EZRUN WP SC8,which can effortlessly and effectively go temperature
towards included CNC machined billet aluminum temperature sink housing,
along side reticulate heatsink and superior cooling fan could well keep your ESC
as cool as you are able to.

Methods of ESC Programming

Multiple choices for ESC development supported:
fundamental settings via SET key concerning the ESC,
advanced level settings via Light-emitting Diode system box/multifunction LCD system field
& Hobbywing USB LINK software.

Regular Firmware Updates
----Free of Charge

You can update the EZRUN WP SC8
aided by the Hobbywing USB LINK software,
a multifunction LCD system field and a mobile computer.
Hobbywing updates its ESC firmware frequently giving you
upgraded features with greater regularity whenever available.

Item Specification

Type

• Scale : 1/10^th、1/8^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Current : 120A/760A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC production : modification Mode:6V/3A

Wires & Connectors

• Input cables : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 30.0x30.0x10.0mm
• Voltage Quantity : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 59.0x38.0x34.0mm
• Weight : 113g
