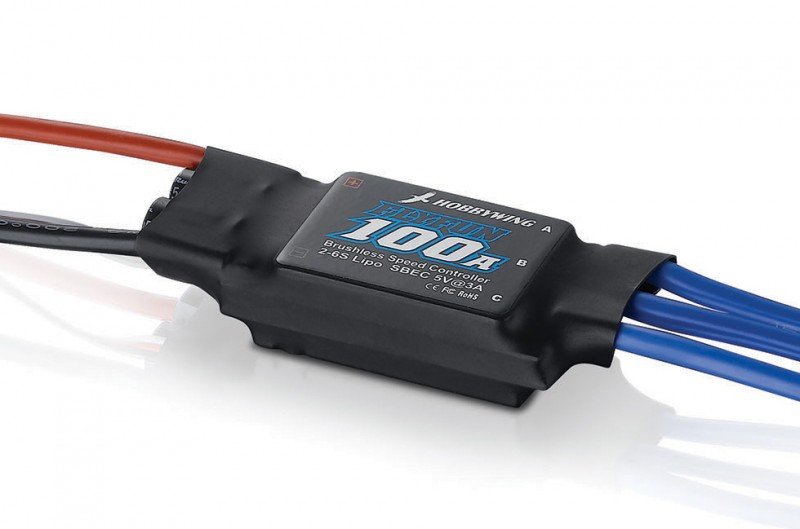

HOBBYWING FlyFun 100A OPTO V4 - 80020660  [HW-80020660]

Great Performance

Imported elements and PCB (printed circuit
board) with incredibly low impedance employed by FlyFun ESCs gurantee
great current endurance, good performance and high reliability.

Programmale Parameters

With a rich set of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is applicable to different aircraft (like fixed-wing,
heli, multirotor and etc.)

A few Protections

Multiple protection features contain abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff effectively prolongs the solution life related to ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 100A/120A
• Input : 2-6S LiPo
• BEC production : No
• Output cables : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 83.0x31.0x14.0mm
• Weight : 73g
