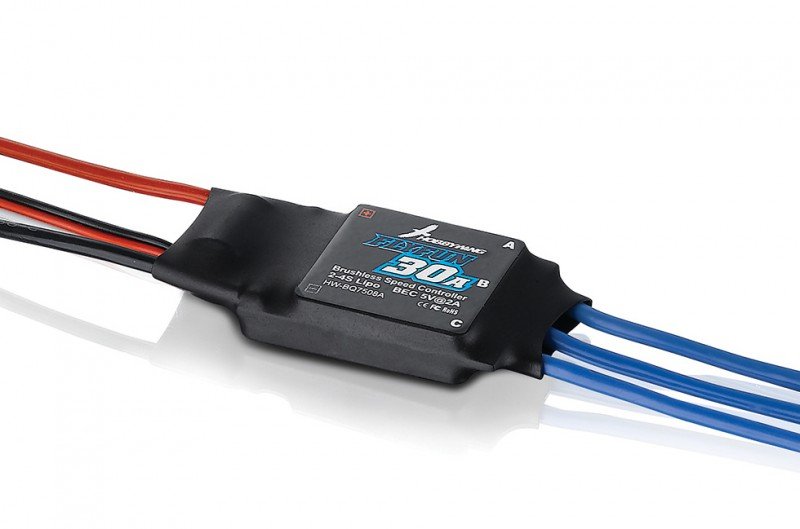

HOBBYWING FlyFun 30A V4 - 80020610  [HW-80020610]

Great Performance

Imported elements while the PCB (printed circuit
board) with excessively low impedance adopted by FlyFun ESCs gurantee
great current stamina, good performance and high reliability.

Programmale Parameters

With a rich couple of programmable parameters (via a LED system
card/box), FlyFun ESC does connect with different aircraft (like fixed-wing,
heli, multirotor and etc.)

A couple of Protections

Multiple safety features include abnomal input
voltage, ESC thermal, throttle indication loss (or Fail secure), and low voltage
cutoff efficiently prolongs the answer life in regards to the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 30A/40A
• Input : 2-4S LiPo
• BEC production : Linear mode:5V,2A
• Output cables : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : perhaps not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 55.0x25.0x9.0mm
• Weight : 26g
