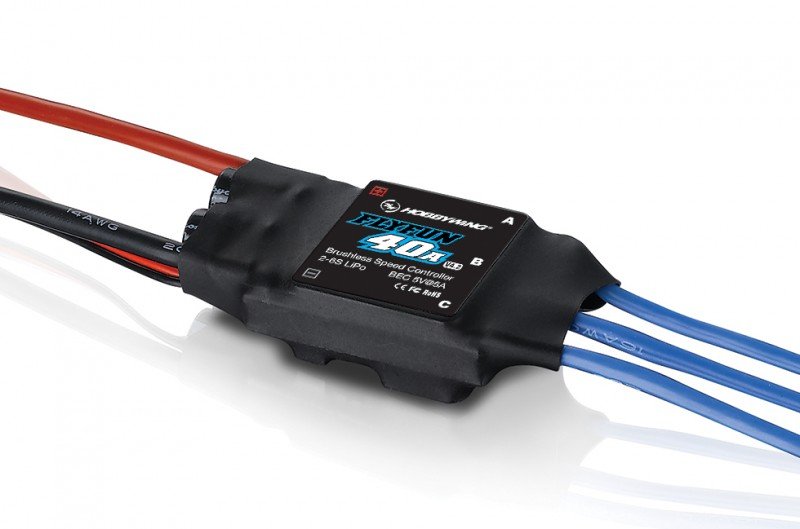

HOBBYWING FlyFun 40A V4.2 - 30214000  [HW-30214000]

Great Performance

Imported elements which means that PCB (printed circuit
board) with exceedingly low impedance used by FlyFun ESCs gurantee
great current stamina, good performance and high reliability.

Programmale Parameters

With a rich band of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing,
heli, multirotor and etc.)

A few Protections

Multiple security features consist of abnomal input
voltage, ESC thermal, throttle indication loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the clear answer life linked to ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 40A/55A
• Input : 2-6S LiPo
• BEC production : Linear mode:5V,3A
• Output cables : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : not Supported
• WiFi Module : not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 60.0x28.0x15.0mm
• Weight : 39g
