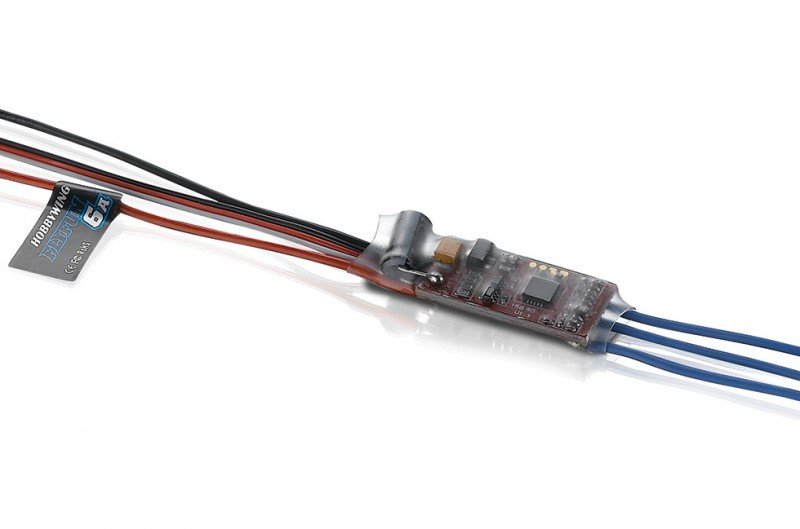

HOBBYWING FlyFun 6A V4 - 80020570  [HW-80020570]

Great Performance

Imported elements thin PCB (printed circuit
board) with acutely low impedance used by FlyFun ESCs gurantee
great present endurance, good performance and high reliability.

Programmale Parameters

With a rich wide range of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC does affect different aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle indicator loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the clear answer life regarding the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 6A/8A
• Input : 2S LiPo
• BEC production : Linear mode:5V,0.8A
• Output Cables : Blue-22AWG-40mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : Not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 32.0x12.0x4.5mm
• Weight : 6g
