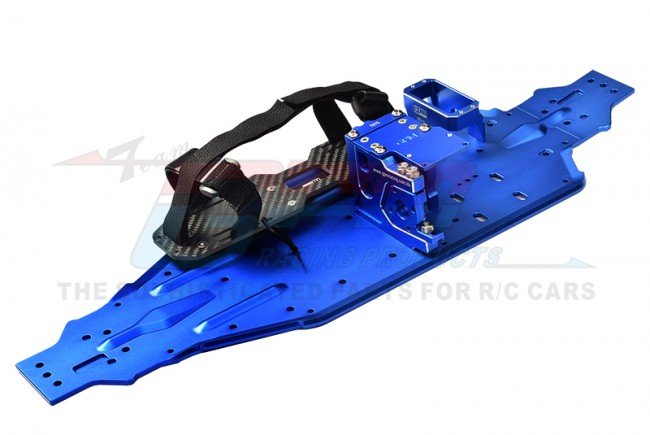

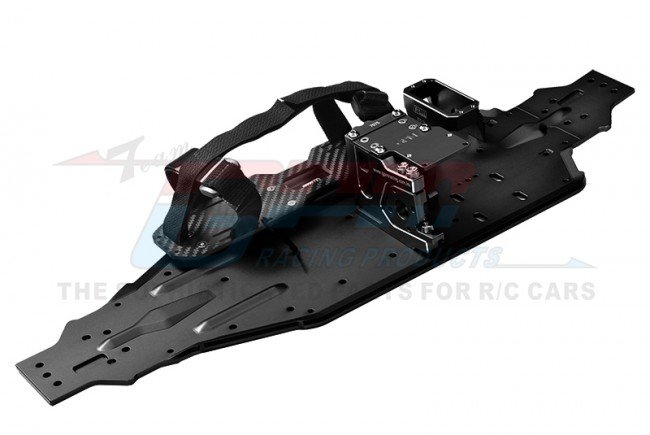

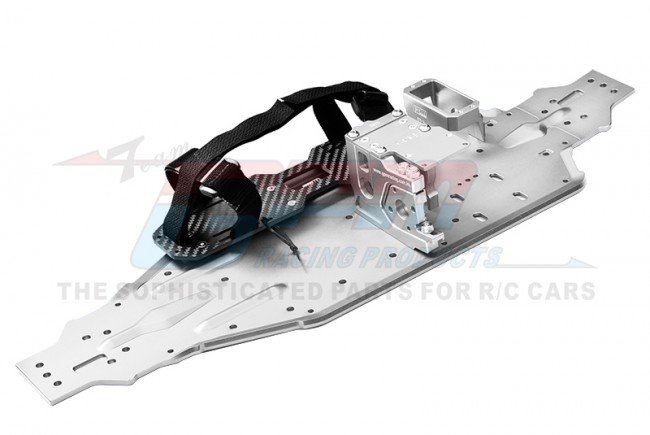

Packing Includes:
SLE016
Chassis Plate-1pc
GSLE0126A
Aluminum 7075-T6 repairing strip-1pc
Carbon fiber battery panel-1pc
Square buckle Velcro-2pcs
Velcro-1pc
Servo mount-1pc
Flat mind Screw 4*10-5pcs
Flat mind Screw 3*10-6pcs
Flat brain Screw 3*6-1pc
Round Head Screw 3x12-4pcs
SLE038AN
Differential & motor mount-6pcs
Stainless metal flat head screw 4x12-5pcs
Stainless metal flat brain screw 3x14-2pcs
Stainless steel flat brain screw 3x8-4pcs
Stainless metal round mind screw 4x12-2pcs
Stainless metal round mind screw 4x10-4pcs
Stainless metal round mind screw 3x8-2pcs
Stainless steel restriction head screws 4*16-2pcs
Stainless steel restriction head screws 3*12-1pc
Stainless metal washer 1*4*8-2pcs
Stainless metal washer 1*3*6-1pc
(Some screws are setup in to the items)
Original name / part No:
9522+9626+9584
Part Location:
Below forward, center, back chassis+battery+Back of center differential
Product major function & use:
Increase the tone of framework, impact-resistant and wear-resistant, and fortify the body structure
Fixed battery
Stabilize center differential and motor

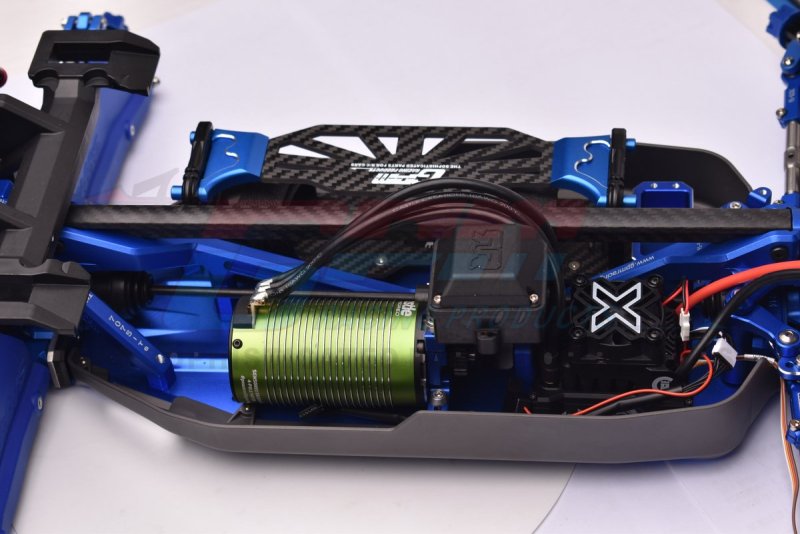

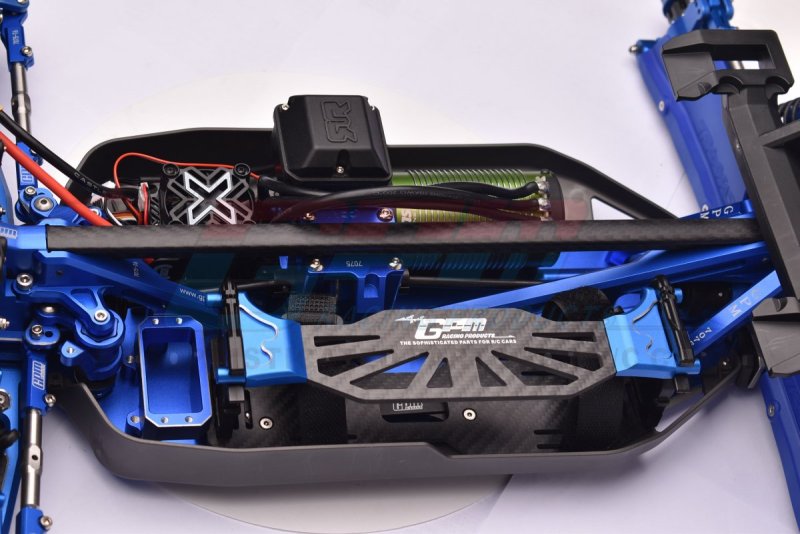

1. The merchandise is upgraded to aluminum 7075-T6, the framework is thickened from 3.2mm to 4.0mm, making this more sturdy.
2. Upgrade the strengthened sides to 5mm depth and integrating the groove among in decreasing bending.
3. There clearly was a reserved spot the substantial motor on electric seat. Which means GPM also create a motor mount with this specific extensive engine later.
4. GPM aluminum 7075-T6 servo mount and battery power compartment integrated, the battery pack compartment keeps initial quick-release voltage plate, that is convenient for disassembly and installing the servo mount.
5. The repairing strip associated with the carbon fibre electric batteries panel by the end is manufactured out of aluminum 7075-T6, which improves the tone from the servo mount plus the battery pack compartment.
6. The available design with Velcro works together various sizes of batteries, and modification is more versatile, and so the battery pack will not be fairly simple to slip during use.
7. The contrary fast launch variation works together along with the investing in 4985. 1717 and also other engines, may be simply operating on 8S.
8. The convenient quick launch engine base is redeveloped by GPM to effectively stop the displacement of motor.
9. The motor gap is reserved for 3mm/4mm, which is often befitting installing many types of motors.
Note: This technique calls for to use with ARRMA AR320422 receiver industry.
Suitable Model:
TRAXXAS-1/8 4WD SLEDGE MONSTER TRUCK-95076-4
