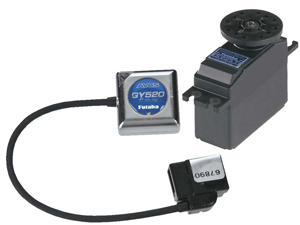

Futaba GY520 Heading Hold Gyro + S9257 Tall Speed Digital Servo for Helicopter Gyro Operation.Futaba GY520 Heading Hold Gyro
QUALITIES:
Ultra small and lightweight gyro contained in one unit-no split sensor and control item
makes use of a top price higher level PID (Proportional-Integral-Derivative) control algorithm current MEMS (Micro-Electro-Mechanical methods) permits complete control system utilizing one chip
Delivers superior performance with analog servos and excels with electronic servos
F3C and 3D mode selectable, six programmable parameters
Functions at quite high rate; 280Hz in the 1520uS mode and 506Hz in the 760uS mode
Programmable through solitary button and multi-color LED or through a pc utilizing Futaba
CIU-2 USB adapter
Registered AVCS (Angular Velocity Control System) architecture achieves unmatched end keeping capability
annually restricted warranty
INCLUDES: Futaba GY520 Heading Hold Gyro, guide, one each 13" (330mm) lead with red connectors and lead with black colored connectors
two chapters of sensor tape, mini screwdriver and directions
NEEDS: Digital or analog servos
SPECS: Size: 0.82 x 0.82 x 0.43" (20.8 x 20.8 x 11mm)
Voltage Range: 3.8 - 6.0V DC
Control System: Advanced PID control
Present Draw: 40mA (without servo)
Sensor: MEMS vibrating structure gyro
running Temperature: 14�XF - 113�XF (-10�XC - +45�XC)
Sensor price quantity: +/- 800�X sec
Angular Velocity number: +- 800 deg/sec
this is actually the Futaba S9257 tall Speed Digital Servo for Helicopter Gyro procedure.
FEATURES:
To be utilized using the Futaba GY401 (FUTM0807, FUTM0808) this means GY502 gyros
made with two ball bearings
12 months limited guarantee
CONTAINS:
Futaba S9257 Tall Speed Digital Servo with .83" (21mm) diameter circular horn, 1.5" (39mm) diameter four-point horn, 1.2" (32mm)
diameter six-point horn, mounting gear, electronic servo
precaution sheet and guarantee card
REQUIRES:
linking to gyro
SPECS: Dimensions: 1.4 x 0.6 x 1.1" (36 x 15 x 29mm)
bodyweight: .92oz (26g)
Torque: 28 oz-in (2.0 kg-cm) at 4.8V
operating Speed: 0.08 sec/60�X at 4.8V
Lead Length: 7.9" (200mm)
