Futaba GY611_S9256 - GY611 Gyro + S9256 Servo  [GY611_S9256]

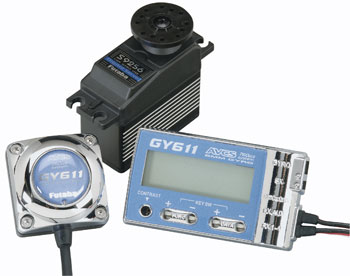

Here is the Futaba GY611 Gyro with the S9256 Digital Servo.

FEATURES:
Super slim pulse drive system significantly improves servo response

Microcomputer high-speed arithmetic processing somewhat improves gyro effect

High-resolution 12-bit A/D (Analog to Digital) accurately converts sensor production to an electric digital Signal

SMM (Silicon Micro Machining) micro-machining technical components and systems near to a silicon chip and low-back aeroform situation improves vibration opposition and neutral attribute

AVCS (Angular Vector Control System) (much like Heading Hold) system demands a high-precision angular velocity detection function and intensely little production drift by simply utilizing a fresh kind of gyro sensor.

This minimizes rudder neutral destination drift during flight and eliminates the should slice the rudder during journey.

Futaba S9256 (FUTM0226) Digital Servo is totally ideal for super slim pulse drive and features high response (.06 sec/60�X) and Alumite situation with temperature sink to cool the engine

INCLUDES:
Futaba GY611 sensor, control amp, S9256 servo, mini screwdriver, 3 parts increase sided tape and instruction sheet

NEEDS:
4.8V Rx electric batteries ONLY (greater voltage could harm the servo)
Assembly and modification onto the helicopter

SPECS:
GY611 Ratings: Yaw-axis stabilizer for helicopter (price gyro)
Display Device: 8-character dot matrix fluid Crystal Show
running Voltage Range: DC 3.8V to 5V
current Drain: 70mA @ 5V, including sensor
Measurements: Amp 2.2"x 1.2"x .59" (57 x 32 x 15mm)
Sensor 1.2"x 1.2"x .71" (30 x 30 x 18mm)
Body weight: Amp 1.19oz (34g) / Sensor 1.05oz (30g)

S9256 Servo
Proportions: 1.6"x .79"x 1.4" (40 x 20 x 36.6mm)
Body weight: 2.01oz (57g)
Speed: .06 sec/60�X (at 4.8V)
Torque: 47 oz-in (3.4 kg-cm) (at 4.8V)
