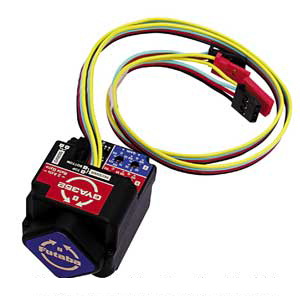

Futaba GYA352 AVCS Gyro w/ SMM Technology for Airplane  [GYA352]

Futaba GYA352 is a two-Axis AVCS airplane gyro, appropriate 2 control areas like elevator and rudder control. This gyro, whenever applied to the elevator and rudder control, can relieve the workload of traveling 3D and lots of hovering maneuvers. AVCS or Angular Velocity Control System is equivalent to 'heading hold', except it utilises a gyro sensor that's more accurate much less prone to vibration than main-stream gyros. It constantly provides control signals toward servo, even yet in the event the axis will not be going, for acutely low temperature drift plus much more good control for hovering and traveling in crosswinds. With this particular gyro, you can switch AVCS on or off whenever assigned to an auxillary switch.

Function and show

• This gyro can identify rotations through the X-axis and Y-axis independantly, and may control aileron and elevator, or elevator and rudder aswell.
• Employing the AVCS system, this gyro constantly keeps the airplane??s mindset regardless if traveling upright, inverted, upward, downward or knife-edge against unforeseen alterations in weather like wind.
• The gyro makes traveling easier by doing most of the modification control for you. The gyro straight away eliminates the bad tendencies of the airplane in addition.
• The gyro has a blending circuit for elevons and ruddervators.
• Because about the extremely low drift connected with newly developed, high-precision gyro-sensor, according to SMM (Silicon Micro unit) technology, trim deviation seldom happens during flight.
• The sensitiveness of gyro are from another location modified from transmitter. Additionally, the AVCS/Normal modes and gyro On/Off may be from another location changed from transmitter.
• Using high-density area mounting technology we discovered the small size and light-weight.
• The conductive resin example improves the opposition to EMI (Electromagnetic interruption).

Includes:

• One GYA352
• One synthetic modification screwdriver
• Three mounting pads
• One instruction sheet

SPECS:

• Measurements: 43x30x35.5mm
• Weight: 49.5g
