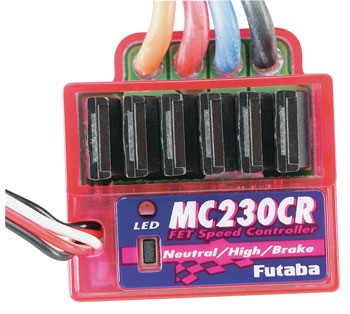

Futaba MC230CR ESC w/Reverse 20+T  [MC230CR]

This is certainly a MC230CR Electronic Speed Control w/ Reverse for 20+ Turn Motors.

TRAITS:

• Operates devices which are often 20 arises to 27 turns (Stock Motors)
• All connectors are pre-installed
• One-touch set-up with set-up Light-emitting Diode.
• Completely proportional forward and reverse
• Includes Reverse Disable it is therefore befitting ROAR rushing
• Heat/overload/short circuit protection
• Low-battery function immediately cuts engine energy whenever energy become too low.
• Receiver reminder switch beeps to remind that you turn off the receiver as well as the vehicle will pulse (maybe not run) ahead as an additional reminder.
• Brake

INCLUDES:

• One MC230CR Electronic Speed Control w/ Reverse, Futaba J receiver connector, bullet connectors, standard kind battery pack connector and ON/OFF switch.
• One Set-Up Screwdriver (FUTM5685)
• One Instruction Sheet

NEEDS:

• Futaba J plug appropriate receiver
• Feminine bullet engine connectors for motor, usage TRIC5500.

SPECS:

• Capability: 6 to 7 mobile batteries
• Motor Limit: 20+ turns
• Current- Forward: 90A Reverse: 45A
• On resistance: .0035 Ohms
• High Frequency: Yes, 1,500Hz
• Connectors: Futaba J, Standard for Battery, Bullet motor (all pre-installed)
• Bullet Engine Wire: 16 measure
• BEC: Yes (6V) (1 amp)
• Length: 1.07" (27.1mm)
• Width: .50" (12.7mm)
• Height: 1.31" (33.3mm)
• fat: 1.55oz (44g)

REMARKS:

Usually, high-torque and brushless servos for steering control works very well using this ESC as long as the constant present draw for the servo cannot surpass 1A constantly. Avoid the Futaba S9157 high-torque servo with this particular ESC as this servo appeals to over 3A."
