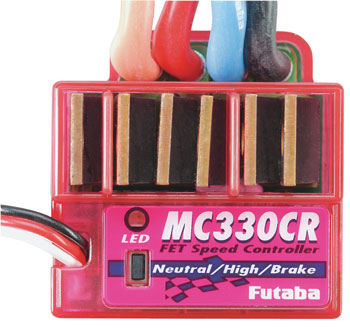

Futaba MC330CR ESC w/Reverse 13+T  [MC330CR]

This may be a MC330CR Electronic Speed Control w/ Reverse for 13+ Turn Motors.

QUALITIES:

• Operates devices that will effortlessly be 13 arises to 27 turns
• All connectors are pre-installed
• Reverse Disable causes it to be right for rushing

INCLUDES:

One MC330CR Electronic Speed Control w/ Reverse and Brake/ Futaba J receiver connector, Standard battery power connector, ON/OFF change. One Vinyl Adjustment Screwdriver

NEEDS:

• Futaba J appropriate receiver
• Feminine bullet motor connectors for motor, use TRIC5500.

SPECS:

• Ability: 6 to 7 mobile batteries
• Engine limitation: 13+ turns
• Current- ahead: 200A Reverse: 100A
• On-resistance: .010 Ohms
• Tall Frequency: Yes, 1,500Hz
• Connectors: Futaba J, Standard for battery, Bullet engine (all pre-installed)
• Bullet engine Wire: 14 gauge
• BEC: Yes
• Length: 1.07"
• Width: .50"
• Height: 1.31"
• Weight: 1.59oz

REMARKS:

Generally, high-torque and brushless servos for steering control can be utilized with this particular ESC provided the constant current draw concerning the servo wont rise above 1A constantly. Avoid the Futaba S9157 high-torque servo with this specific ESC as this servo attracts over 3A."
