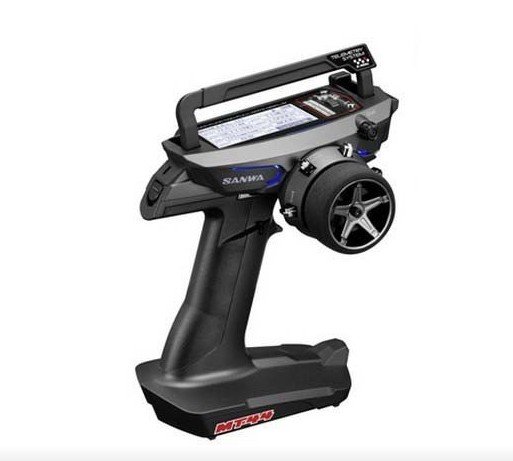

Sanwa MT-44 - 4-Channel 2.4G Transmitter With RX481 and RX482 Receiver  [SW-MT-44-812B]

Beyond Middle Class Radios, The MT-44 Transmitter

• HIGH DEFINITION DISPLAY
  The identical step by step dot as M12S allows therefore clear display.
  Three as a form of telemetry data is exhibited at the same time as a consequence of grey scale display.
• BEST DESTINATION FOR STEERING / THROTTLE
  Steering/Throttle is arranged towards the best destination for operation.
  Drop Down is used as standard postion.
• THREE AAA BATTERIES
  Three AAA batteries enables become not only compact and light.
• USB CHARGE
  When used with optional Li-Po 1 mobile electric batteries, fat become lighter and it will be changed from USB input.

Features:

• SYSTEM: 2.4GHz FH4T/FH3
• 4CH
• Movable Carrying Handle
• Quick Setup Wizard
• Safety Link
• Racing Mode
• Customized Menu
• Micro SD card-compatible
• Telemetry Switch
• Clock
• Circumstance Temperature Display
• CSV manufacturing for LOG data
• CODE 10-compatible (Naming help)
• Simultaneous three telemetry information display
• Three AAA Batteries
• Li-Po 1 cell-compatible (USB modification support)

• Large complete dot LCD monitor
• Wight LED right back light
• Full adjustable trigger
• Telemetry function
• integrated antenna
• Multi Menu Selector
• ST/TH Tension Adjuster
• Dual Rate
• End aim Adjuster
• Anti-lock Brake
• Servo Speed
• Offset
• Trim/Sub trim
• Servo Reverse
• Curve (Exponential /Adjustable speed Control)
• AUX1 (motion kind for 3CH. it's just like MT-4S function.)
• AUX2 (motion sort for 4CH. it's similar to MT-4S function.)
• Fail safe (power/ battery pack) ?Timer (lap/ interval/ down)
• Lap
• Logger
• 20 model memory (whenever along with facts, 250 models may be had.)
• Model Title (12 letters)
• Model (Select/ Clear/ Copy)
• Direct Model Select
• Trim Type (Center/ parallel)
• Throttle Type (70:30 / 50:50)
• RF MODE Setting (FH4T/FH3)
• reaction Mode Setting (NOR/SHR/SSR)*
• Key Assign(SW/TRIM/DIAL/LEVER)
• AUX TYPE SETTING
• CODE AUX (w/ Naming function)
• STEP AUX (1 - 100)
• POINT AUX (2 - 6 point)
• 4WS MIXING (Front/Rear/Normal(coordinate period)/Reverse(opposite stage))
• MOA BLENDING (FWD/4WD/RWD)
• AUX MIXING (ST MIXING/ TH MIXING)
• Buzzer(scale/volume)
• Transmitter Battery Alarm
• LCD Contrast
• Volume Adjustment
• Mechanical Rudder Angle
• Small Grip Pad

Compatible Receivers:

• Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
• Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)


Cautions and supplemental description:

[SSL(SANWA Synchronized Link) Sysytem]
SANWA new SSL SYSTEM

• Whenever utilized in combination with appropriate RX-472, RX-482, Super Vortex Series, SV-Plus Series, the surroundings of ESC an such like. by Transmitter can be had through SSL functions while driving.
• Since the environmental surroundings may be accomplished without end of vehicle, the detailed modification relative to Race conditions
  is available without interruption of Intervals as well as the modification of unit conditions.


[Response of Telemetry System]

• It is stated that telemetry system reduce effect speed. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without reaction rate decrease.
  Our Excellent Telemetry System doesn't always have reaction rate decrease.
• With our telemetry system, the valuable battle information helps these competition environment and driving.


[Response Mode]

• Please don't use Analog Servo for SHR mode or SSR mode.
  If analog servo is employed for SHR mode or SSR mode, the servo is going to be broken and certainly will not work.
  Digital servo (SRG show, Digital ERG show, SDX show) can be utilized both for NOR mode and SHR mode.
• SSR mode may be used simply by SRG show servo.
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR usually do not work.
  Please usage NOR mode the above ESC.
