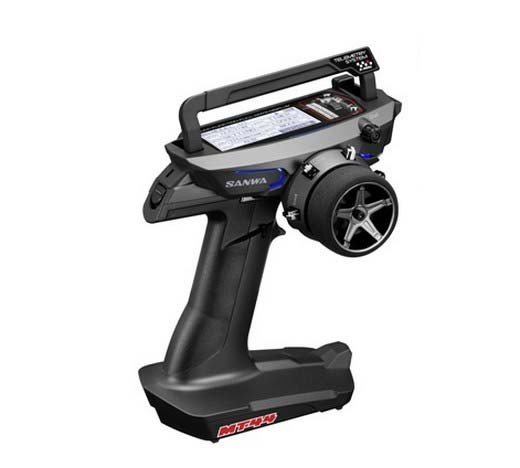

Sanwa MT-44 - 4-Channel 2.4G Transmitter with RX482 and RX472 Receiver  [SW-MT-44-78B]

Beyond Middle Income Radios, The MT-44 Transmitter

• TALL RES SHOW
  Similar detailed dot as M12S allows consequently clear display.
  Three kind of telemetry information is shown and due to gray scale display.
• IDEAL DESTINATION FOR STEERING / THROTTLE
  Steering/Throttle is arranged into the most useful spot for procedure.
  Drop Down is necessary as standard postion.
• THREE AAA BATTERIES
  Three AAA batteries enables become not only compact and light.
• USB CHARGE
  Whenever along with optional Li-Po 1 mobile battery, fat become lighter and it's changed from USB input.

Features:

• SYSTEM: 2.4GHz FH4T/FH3
• 4CH
• Movable Carrying Handle
• fast Setup Wizard
• Protection Link
• rushing Mode
• Customized Menu
• Micro SD card-compatible
• Telemetry change
• Clock
• Circumstance Temperature Show
• CSV Output for LOG information
• GUIDELINE 10-compatible (Naming assistance)
• Simultaneous three telemetry data reveal
• Three AAA Batteries
• Li-Po 1 cell-compatible (USB modification assistance)

• Large complete dot LCD monitor
• Wight LED back light
• Complete adjustable trigger
• Telemetry function
• Integrated antenna
• Multi Menu Selector
• ST/TH Tension Adjuster
• Twin speed
• End aim Adjuster
• Anti-lock Brake
• Servo Speed
• Offset
• Trim/Sub trim
• Servo Reverse
• Curve (Exponential /Adjustable Speed Control)
• AUX1 (movement kind for 3CH. it's just like MT-4S function.)
• AUX2 (motion kind for 4CH. it's the same as MT-4S function.)
• Fail safe (power/ battery pack) ?Timer (lap/ interval/ down)
• Lap
• Logger
• 20 model memory (whenever found in combination with sdcard, 250 models can be obtained.)
• Model Title (12 letters)
• Model (Select/ Clear/ Copy)
• Direct Model Select
• Trim Type (Center/ parallel)
• Throttle Type (70:30 / 50:50)
• RF MODE Setting (FH4T/FH3)
• effect Mode Setting (NOR/SHR/SSR)*
• Key Assign(SW/TRIM/DIAL/LEVER)
• AUX TYPE SETTING
• CODE AUX (w/ Naming function)
• STEP AUX (the first step - 100)
• POINT AUX (2 - 6 point)
• 4WS MIXING (Front/Rear/Normal(coordinate duration)/Reverse(opposite duration))
• MOA MIXING (FWD/4WD/RWD)
• AUX MIXING (ST MIXING/ TH MIXING)
• Buzzer(scale/volume)
• Transmitter Battery Alarm
• LCD Contrast
• amount Adjustment
• Mechanical Rudder Angle
• Small Grip Pad

appropriate Receivers:

• Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
• Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)


Cautions and supplemental description:

[SSL(SANWA Synchronized Link) Sysytem]
SANWA groundbreaking SSL SYSTEM

• Whenever combined with suitable RX-472, RX-482, Super Vortex Series, SV-Plus Series, the environment of ESC and so on. by Transmitter could be had through SSL functions while driving.
• due to the fact environment can be carried out without stop of vehicle, the step-by-step modification in accordance with Race conditions
  may be had without interruption of periods plus the modification of machine conditions.


[Reaction of Telemetry System]

• it is stated that telemetry system reduce response rate. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without effect speed decrease.
  Our excellent Telemetry System doesn't have response rate decrease.
• With your telemetry system, the valuable battle information assists another battle setting and driving.


[Reaction Mode]

• Do not use Analog Servo for SHR mode or SSR mode.
  If analog servo can be used for SHR mode or SSR mode, the servo will soon be broken and will maybe not work.
  Digital servo (SRG show, Digital ERG series, SDX show) can be utilized both for NOR mode and SHR mode.
• SSR mode can be used only by SRG show servo.
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR tend not to work.
  Please use NOR mode the aforementioned ESC.
