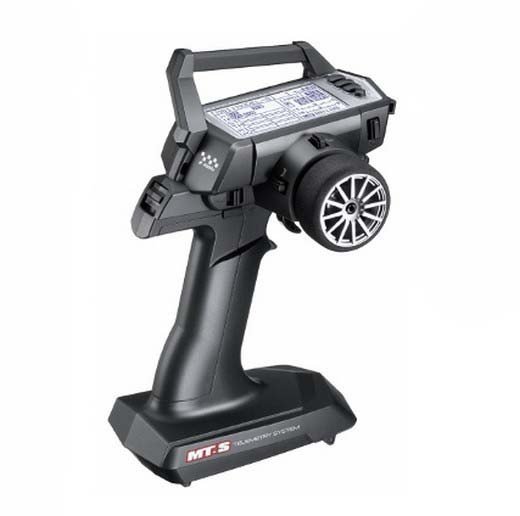

Sanwa MT-S - 4CH 2.4Ghz with RX-482 x 2, FH4/FH3 SSR SSL 4cell  [SW-MT-S]

QUALITIES:

• SETUP WIZARD FOR EASY SETTING,CAR TYPE(8 MODEL KINDS) MIGHT BE SET REALLY.
• SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE,The suitable gear are set by transmitter through CODE AUX functions.
  *Compatible gear: SUPER VORTEX SERIES,SV-PLUS SERIES, SGS-01C (Gain modification)
• LIGHT BODY (366g),EASY PROCESS FOR KIDDIES
• MIDDLE INCOME (BASIC)

SYSTEM QUALITIES:

• WHITE LED BACK LIGHT
• LARGE FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• INTEGRAL ANTENNA
• TELEMETRY FUNCTION
• DUAL RATE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE PRICE CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY PACK)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKE
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT ESTABLISHING
• TELEMETRY ESTABLISHING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / AMOUNT CHANGEABLE)
• TRANSMITTER BATTERY ALARM?LCD COMPARISON
• VOLUME ADJUSTMENT
• SETUP WIZARD?RF MODE SETTING(FH4/FH3)
• RESPONSE MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE TECHNIQUE STYLE OF 3CH)
• AUX2(SELECT THE PROCESS TYPE OF 4CH)
• AUX TYPE SETTING
• CODE AUX (APPROPRIATE SUPER VORTEX ZERO & TYPE-D MENU)
• STEP AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS BLENDING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE PRICING IS VARIABLE.
• AUX BLENDING (ST MIXING, TH MIXING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,
  RX-472, RX-481, RX-482

CAUTIONS AND SUPPLEMENTAL DESCRIPTION

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA new SSL SYSTEM

• whenever used in combination with appropriate RX-472, RX-482, Super Vortex Series, SV-Plus Series, the environment of ESC an such like. by Transmitter can be acquired through SSL functions while driving.
• Considering that the environment could be accomplished with no end of car, the step-by-step modification before Race conditions can be had without interruption of durations therefore modification of device conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• it is known that telemetry system reduce effect rate. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without reaction speed decrease.
  Our exceptional Telemetry System doesn't have effect speed decrease.
• With this specific telemetry system, the valuable competition information can help these competition establishing and driving.

[RESPONSE MODE]

• don’t utilize Analog Servo for SHR mode or SSR mode.
• If analog servo is employed for SHR mode or SSR mode, the servo will be broken and may maybe not work.
• Digital servo (SRG show, Digital ERG series, SDX show) may be used both for NOR mode and SHR mode.
• SSR mode can be used simply by SRG show servo.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR never work.
• Please use NOR mode the aforementioned ESC. SV-08, HV-10, HV-12, F2500 can work by NOR/SHR MODE.
