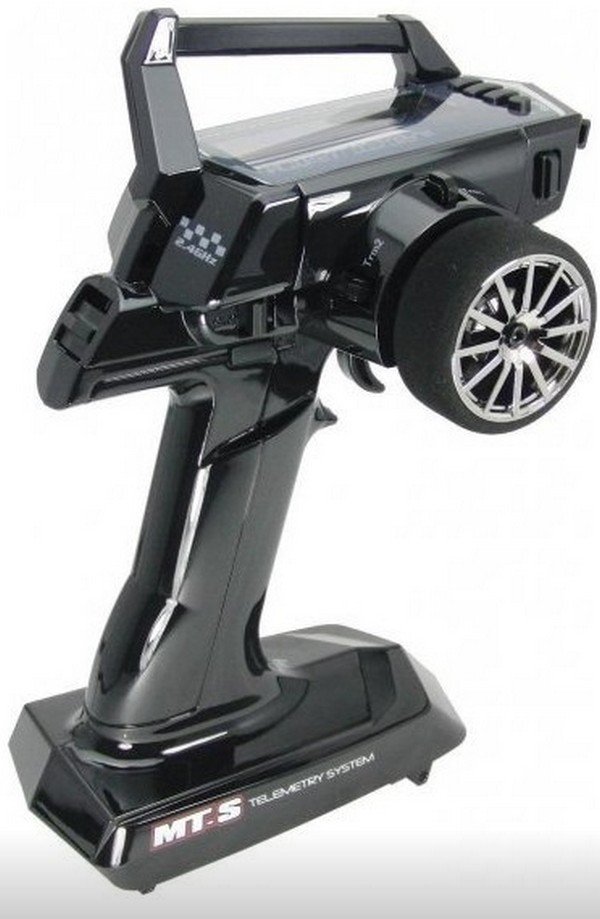

Sanwa MT-S Piano Black Limited Edition With Receiver RX-482 and RX-481WP  [SW-MTS-4821BK]

QUALITIES:

• SETUP WIZARD FOR EFFORTLESS SETTING,CAR TYPE(8 MODEL TYPES) IS SCHEDULED DEFINITELY.
• SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE,the best gear may be set by transmitter through CODE AUX functions.
  *Compatible gear: SUPER VORTEX SERIES,SV-PLUS SERIES, SGS-01C (Gain modification)
• LIGHT BODY (366g),EASY PROCESS FOR KIDDIES
• MIDDLE CLASS (BASIC)

SYSTEM QUALITIES:

• WHITE LED BACK LIGHT
• LARGE FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• INTEGRAL ANTENNA
• TELEMETRY FUNCTION
• DUAL RATE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE RATE CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKE
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT ESTABLISHING
• TELEMETRY SETTING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / AMOUNT CHANGEABLE)
• TRANSMITTER BATTERY ALARM?LCD COMPARISON
• VOLUME ADJUSTMENT
• SETUP WIZARD?RF MODE SETTING(FH4/FH3)
• RESPONSE MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE METHOD KIND OF 3CH)
• AUX2(SELECT THE DUTY SELECTION OF 4CH)
• AUX TYPE ESTABLISHING
• CODE AUX (BEFITTING SUPER VORTEX ZERO & TYPE-D MENU)
• ACTION AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS BLENDING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE PRICING IS VARIABLE.
• AUX BLENDING (ST MIXING, TH MIXING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,
  RX-472, RX-481, RX-482

CAUTIONS AND SUPPLEMENTAL EXPLANATION

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA amazing SSL SYSTEM

• whenever used with suitable RX-472, RX-482, Super Vortex Series, SV-Plus Series, the environmental surroundings of ESC an such like. by Transmitter can be had through SSL functions while driving.
• simply because the environment can be achieved without any stop of car, the step by step modification prior to Race conditions can be had without disruption of periods as well as the modification of machine conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• It is often stated that telemetry system reduce response rate. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without reaction speed reduction.
  Our excellent Telemetry System does not have response speed decrease.
• with this telemetry system, the valuable battle information may help another battle setting and driving.

[RESPONSE MODE]

• do not use Analog Servo for SHR mode or SSR mode.
• If analog servo is employed for SHR mode or SSR mode, the servo are broken and can not work.
• Digital servo (SRG show, Digital ERG series, SDX show) may be used both for NOR mode and SHR mode.
• SSR mode can be used by SRG show servo.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR wont work.
• Please use NOR mode for the above ESC. SV-08, HV-10, HV-12, F2500 could work by NOR/SHR MODE.

RX-482

• 2.4GHz FHSS4 Spread range system 4ch
• SSL assistance (ESC: Super Vortex Series etc.)
• incorporated Antenna
• Sanwa Super reaction (SSR) help
• Frequency: 2.4GHz FHSS4
• Channel: 4ch
• Nominal Input Voltage: 3.7V~7.4V
• Proportions: 18.2x24.4x27.1mm
• Body fat: 7.1g
• Appropriate radio :M12, Exzes Z, MT-4S, MT-4(No SSL assistance)
