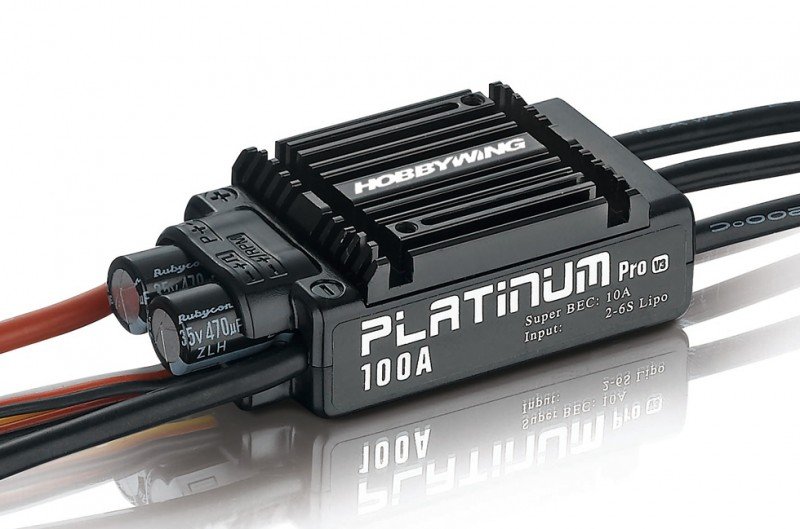

HOBBYWING Platinum 100A V3 - 30203900  [HW-30203900]

New Design & Excellent Performance

New framework design coupled with superior micro-processor
guarantees users efficient heat dissipation, good compatibility (with different machines),
high driving efficiency, and etc.

Great power Output

This Platinum 100A V3 ESC featuring a consistent present of 100A
and top up-to-date as high as 150A guarantees users high and stable manufacturing
regularly during each journey.

Tall Voltage Built-in BEC

The included switch mode BEC with a voltage adjustable among
6.0V/7.4V/8.4V, a continuous present of over 10A and top present of 25A
provides enough energy the servos to utilize effortlessly.

Effective Heat-dissipating System

Besides the heatsink on Platinum 100A V3, an additional cooling
fan is roofed in item industry to improve cooling performance (customers can arrange it
onto ESC heatsink if required).

Four Flight Modes & “Auto Restart” Function

This Platinum 100A V3 ESC featuring “Fixed-wing/Helicopter (Linear
Throttle)/Helicopter (Elf Governor)/Helicopter (shop Governor)” four
trip modes and “Auto Restart (Time)” function guarantees users excellent
speed-governing performance in Heli Governor mode and allows users to cutoff manufacturing and restart
engine for avoiding possible crash due to bad procedure.

A few Protections

Multiple safety features have irregular input voltage,
ESC thermal, throttle sign loss (or Fail secure), and low voltage cutoff
efficiently prolongs the solution life of the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 100A/150A
• Input : 2-6S LiPo
• BEC production : change Mode:6V/7.4V/8.4V,10A

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : perhaps not Supported
• LED Program Box : not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : certain system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 70.0x35.0x21.0mm
• Weight : 104g
