Excellent engine Governing Speed
High-performance 32-bit processor with a running regularity of 72MHz
coupled with higher level algorithm optimizes the rate governing.
Alongside the adjustable governor parameters guarantees every
pilot an accurate control experience
Tall Voltage incorporated BEC
The integral switch mode BEC with a variable voltage (6V/7.4V the Platinum
25A V4, 5V~8V with the action of 0.1V for the Platinum 40A V4), a consistent up-to-date
of over 3A/7A (3A for the Platinum 25A V4, 7A the Platinum 40A V4) and a high
present of 7A/18A (7A the Platinum 25A V4, 18A the Platinum 40A V4) can
supply sufficient power the servos to work well.
DEO Technology
The DEO (Driving effectiveness Optimization, or maybe more called "Active Freewheeling")
technology applied inside ESC has its own benefits.
● faster a reaction towards throttle modification.
● greater driving effectiveness, much longer trip time.
● Lower ESC temperature and an even more dependable procedure.
Reverse Brake
With the opposite Brake mode enabled whenever landing can effectively
reduce the sliding distance of fixed-wing aircraft to simulate the
landing of a real aircraft (within a brilliant short distance). The conventional
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
additionally available; the stopping system amount is adjustable in normal braking system mode
whilst in proportional braking system mode, the stopping system force will be immediately
allotted in line with the position of radio throttle stick.
A few Protections
Multiple protection features include, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle indication loss
(or Fail secure), and low voltage cutoff effectively
prolongs the clear answer life associated with the ESC.
Other Features
A split development slot to have in touch the programmer with this ESC permits individual to
● Program ESC,
● check flight information have minimal voltage, maximum temperature, standardized RPM
and price curve (in Heli Governing store mode) about the trip information recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD system industry or a Wi-Fi Module & our
Apple/Android phone App.

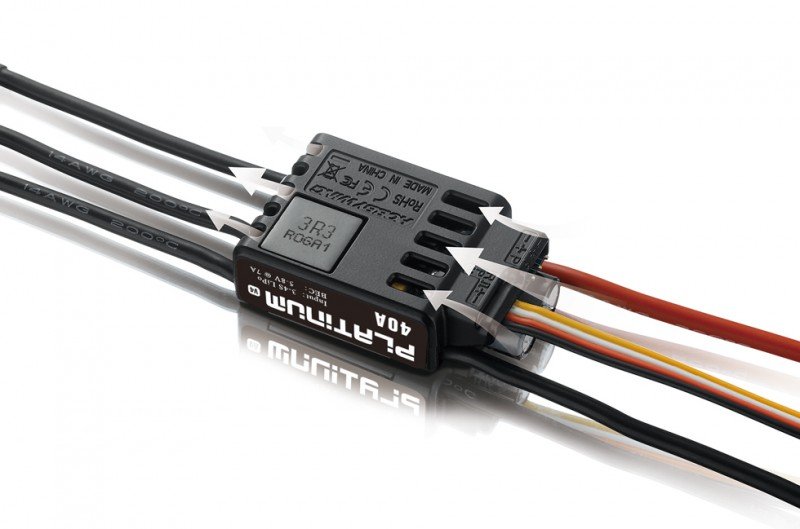

Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : Regular
Specifications
- Cont./Peak Present : 25A/40A
- Input : 3-6S Lipo
- BEC production : change Mode:6V/7.4V,3A
Wires & Connectors
- Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output cables : Black-18AWG-100mm*3
- Input Connectors : No
- Output Connecotors : 3.5mmGold Connectors (Female)
ESC Programing via
- Transmitter : perhaps not Supported
- LED Program Card : perhaps not Supported
- LED Program Box : not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : individual Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 47x22x10mm
- Weight : 27g
