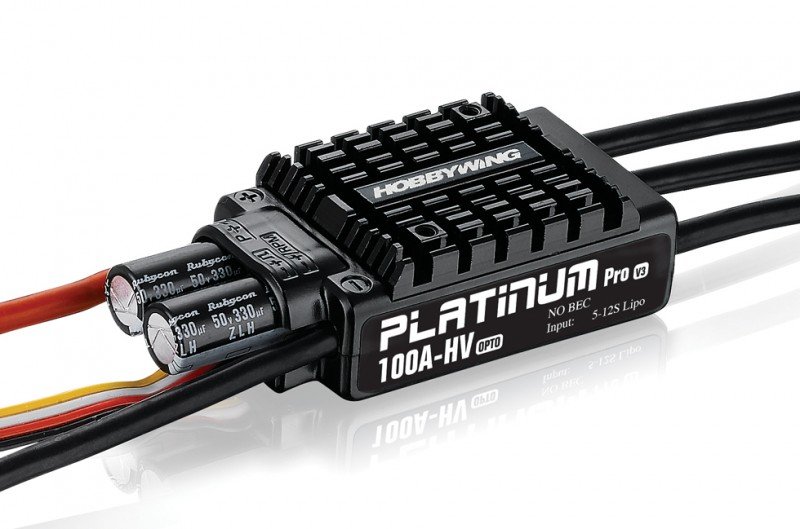

HOBBYWING Platinum HV 100A OPTO V3 - 30203600  [HW-30203600]

Great energy Output

This Platinum HV 100A OPTO V3 ESC can output a frequent present
of 100A and top present entirely to 140A.

Brand new Design & exceptional Performance

New framework design in conjunction with superior micro-processor guarantees
users efficient temperature dissipation, good compatibility (with different machines),
high driving effectiveness, and an such like.

High-voltage Battery Packs Supported

This HV 100A OPTO V3 ESC is supposed the procedure of 6-12S LiPo battery pack packages.

Four Flight Modes & “Auto Restart” Function

This ESC featuring “Fixed-wing/Helicopter (Linear Throttle)/Helicopter
(Elf Governor)/Helicopter (store Governor)” four journey modes and “Auto
Restart (Time)” function guarantees users excellent speed-governing
performance in Heli Governor mode and allows users to cutoff production and restart
engine for avoiding feasible crash triggered
by bad procedure.

Some Protections

Multiple safety features include uncommon input voltage, ESC thermal,
throttle signal loss (or Fail secure), and low voltage cutoff effectively prolongs the answer
life concerning the ESC.

Other Features

A split system port to have connected programmer on this ESC permits specific to
● system ESC;
● upgrade ESC firmware (multifunction LCD system package is needed);
● monitor/record journey data straight away (with an information transmission module);
● power the excess cooling fan (a fundamental element of product package).

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Present : 100A/140A
• Input : 5-12S LiPo
• BEC production : No

Wires & Connectors

• Input cables : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : maybe not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 77.0x35.0x21.0mm
• Weight : 104g
