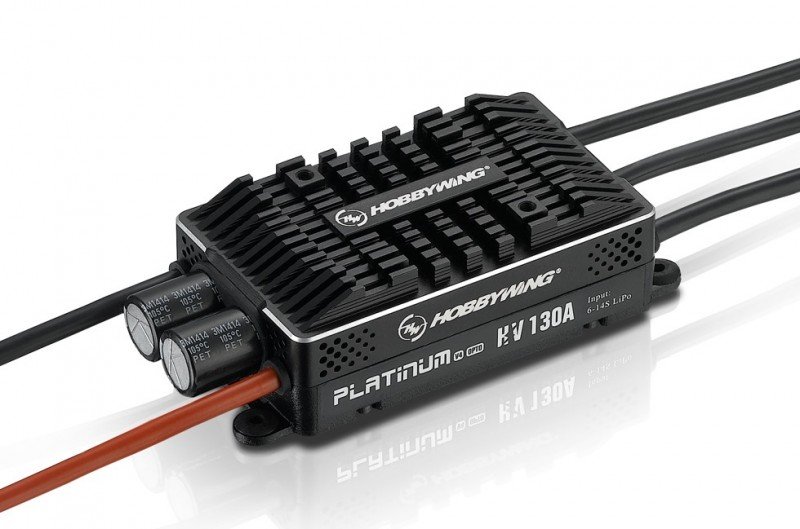

HOBBYWING Platinum HV 130A OPTO V4 - 30209201  [HW-30209201]

Super smooth Start-up

Platinum V4 serial items allows the engine in the first place extremely smooth and prevents tail-drift
conditions that helicopters experience. The start-up time is adjustable from 8 to 25 moments,
this will truly produce an incredible kick off point for each journey.

Excellent Motor Speed Governing

High-performance 32-bit processor with a working regularity of 72MHz with
higher level algorithm optimizes the rate governing. Alongside the adjustable
governor parameters guarantee every pilot an accurate control experience.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four stopping system modes. The braking system volume is adjustable in normal
braking system mode; in proportional braking system mode, the braking system force could be instantly
allotted great place of radio throttle stick; backwards braking system mode, the
engine rotation might be changed via an extra transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : high Voltage

Specifications

• Cont./Peak Present : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC manufacturing : No

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : maybe not Supported
• LED Program Card : maybe not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 101.0x45.5x27.0mm
• Weight : 154g
