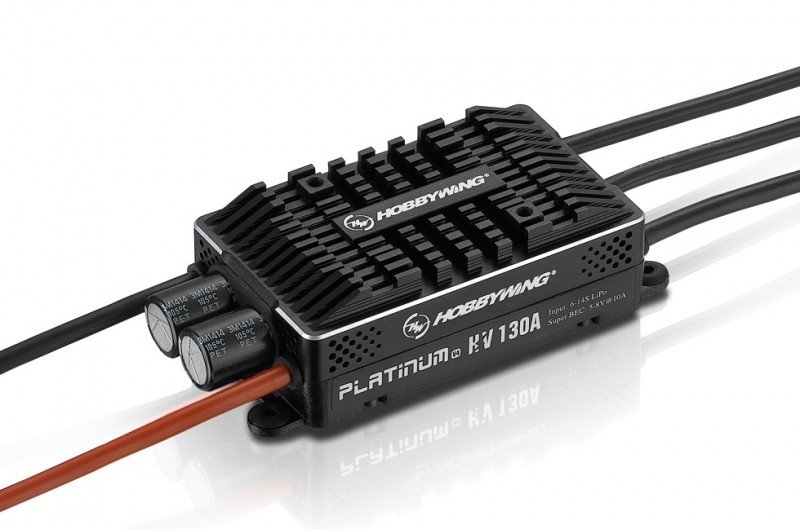

HOBBYWING Platinum HV 130A V4 - 30209200  [HW-30209200]

Super Soft Start-up

Platinum V4 serial products allows the engine to begin acutely smooth and prevents tail-drift
conditions that helicopters experience. The start-up time is adjustable from 8 to 25 moments,
this may truly produce an unbelievable starting point for each journey.

Excellent engine Speed Governing

High-performance 32-bit processor with an operating frequency of 72MHz in conjunction with
advanced level algorithm optimizes the purchase price governing. Alongside the adjustable
governor parameters guarantee every pilot an exact control experience.

Tall Voltage integrated BEC

The integrated switch mode BEC with an adjustable voltage consist of 5V to 8V, an ongoing up-to-date of
over 10A and top present of 25A can offer enough power for the servos to use efficiently.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four stopping system modes. The braking system amount is adjustable in normal
brake mode; in proportional braking system mode, the braking system force will probably be immediately
allotted good position of radio throttle stick; backwards stopping system mode, the
engine rotation might be changed via an extra transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : high Voltage

Specifications

• Cont./Peak Present : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC manufacturing : change Mode:5-8V,10A

Wires & Connectors

• Input cables : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : perhaps not Supported
• LED Program Card : not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 101.0x45.5x27.0mm
• Weight : 169g

Applications
