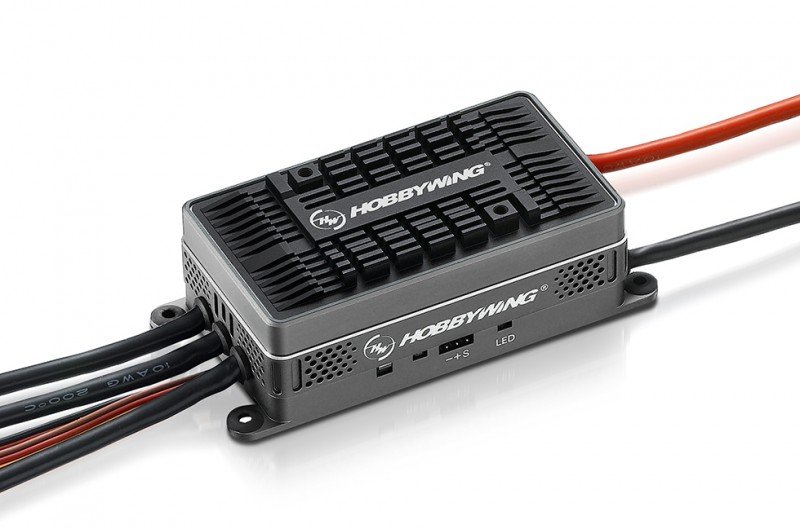

HOBBYWING Platinum HV 160A V4 - 30203700  [HW-30203700]

Original Design

The elegant circumstances are manufactured by Aluminum. Each cooling slot and its fin ended up being certainly cautiously developed
and arranged, and also the instance experienced oxidation, coloring and edge-highlighting.

Revolutionary Heat Dissipation
Structure

The innovative "duo" stacking framework
allows all elements on both edges of
imprinted circuit panels to quickly conduct
temperature towards the aluminum instance.

Exemplary engine Speed
Governing

High-performance 32-bit processor combined
with high rate algorithm makes the engine
speed-governing excellent for various
conditions. With all the current adjustable sensitiveness of
speed-governing, every pilot can find numerous
suitable settings regarding their helicopter.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Present : 160A/200A
• Input Voltage : 6-14S LiPo
• BEC manufacturing : change Mode:5-8V,10A

Wires & Connectors

• Input cables : Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output cables : Black-10AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : maybe not Supported
• LED Program Card : not Supported
• LED Program Box : not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 106.0x50.0x34.0mm
• Weight : 282g
