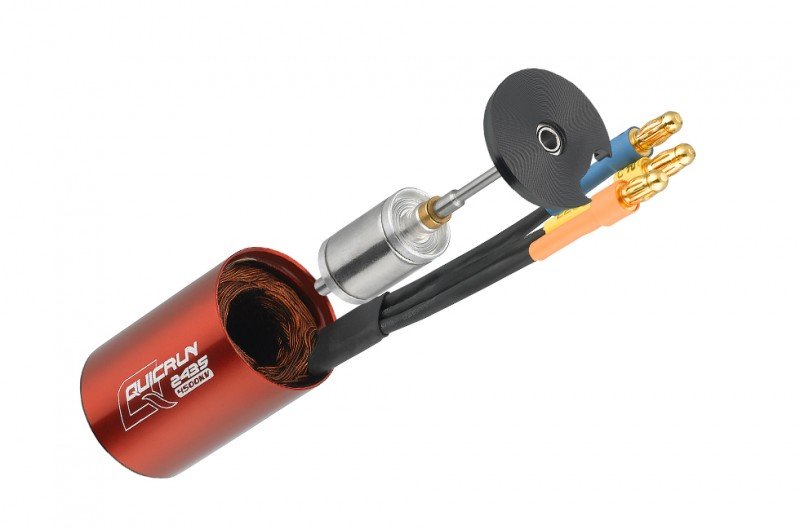

HOBBYWING QuicRun 2435 G2 - 30404001  [HW-30404001]

Great Construction

The using a heat-resistant magnet connected steel situation and dual insulated windings,
high accuracy bearings, and rotor with a robust framework guarantees outstanding
performance and super durability.

Cost-effective

The QUICRUN-2435 is an inexpensive engine but appropriate
to 1/16^th & 1/18^th scale cars.

High Efficiency

The production performance with this engine has an effectiveness completely to 80percent.
In identical load condition, QUICRUN 2435 provides the greater effectiveness but reduced heat
than a number of other 2435 engines.

Dustproof Design

The dustproof design implemented at load end with this engine makes this
QUICRUN 2435 motor relevant for monster trucks, buggies.

Plug and Play

Pre-soldered with top-notch silver connectors on engine leads,
the QUICRUN 2435 engine is a plug and play.

Item Specification

Type

• Scale : 1/16^th、1/18^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Pole Count : 2

Relevant Parameters

• KV Rating : 4500
• LiPo Cells : 2-3S
• No-load Current(A) : 1.5
• Max. Energy Output(W) : 150
• Current during the aim of Max. Energy Output(A) : 33

Size & Weight

• O.D.(mm) : 24.0
• Length (mm) : 36.5
• Shaft Diameter (mm) : 2.3
• Weight (g) : 73
