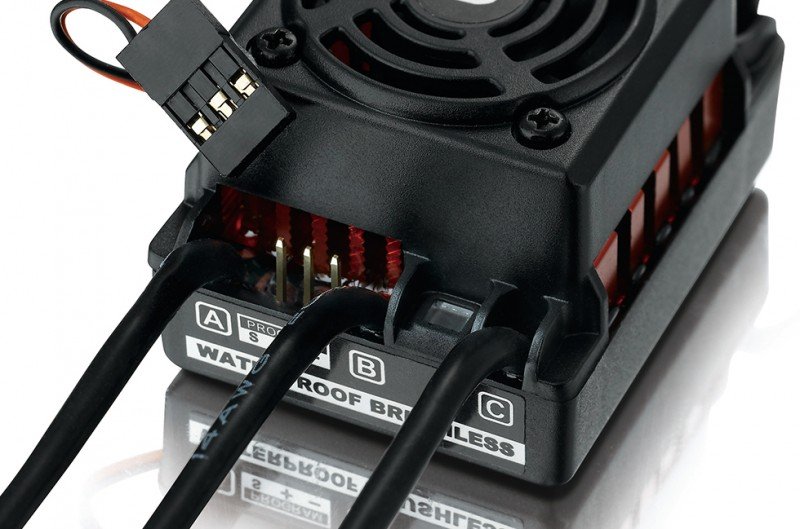

HOBBYWING QuicRun WP 10BL60 - 30107100  [HW-30107100]

Effortless Operation

This ESC is quite designed for unique novices and intermediate modelers;
it not merely carries forward the outstanding quality of HOBBYWING things
but simplifies the job.

Applicable to all or any Weather Conditions

The waterproof and dust-proof design enables the QUICRUN WP-10BL60
can be found in most weather conditions with no dilemma of harm
triggered towards the ESC from water or dust.

Tall Reliability & Durability

Reliable equipment coupled with advanced level software technology
allows the QUICRUN 10BL60 never to merely provide high energy manufacturing but
in addition overload protection the ESC circuit.

Integrated BEC

The integral switch mode BEC with a maximum production of 6Amp and voltage
of 6V make this ESC ideal for various servos.

Single-button Programming & Factory Reset

The SET key regarding ESC permits an individual to easily prepare or factory reset the ESC easily.

Item Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Present : 60A/360A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC manufacturing : change Mode:6V/3A

Wires & Connectors

• Input Wires : Red-14AWG-150mm*1/Black-14AWG-150mm*1
• Output cables : Black-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connector (Female)

Fan

• Size : 30.0x30.0x10.0mm
• Voltage Quantity : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : not Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 48.5x38.0x32.0mm
• Weight : 90g

Applications

• Motors : SL BL Motors/SD BL Motors(just in SL mode)
• Vehicles : 1/10^th Touring Cars/Buggies/Trucks/Monster Trucks
