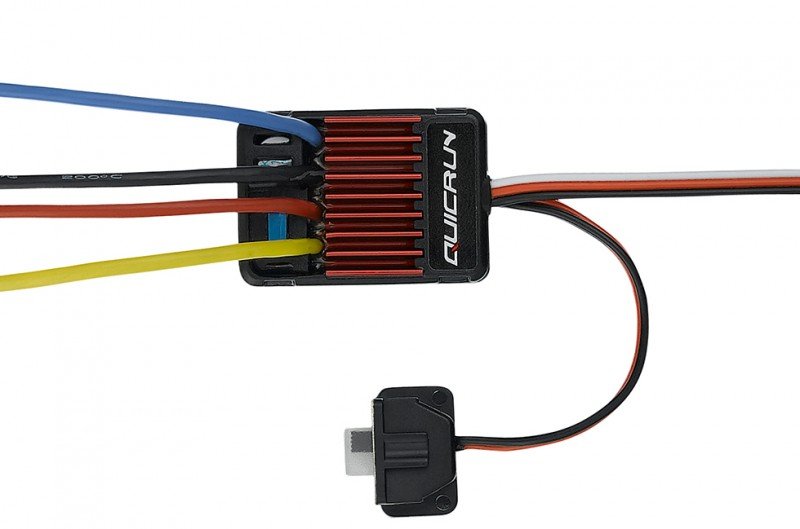

HOBBYWING QuicRun WP 1625 Brushed - 30120000  [HW-30120000]

Effortless Operation

This ESC is specially designed for brand-new novices and intermediate modelers;
it not only holds ahead the outstanding quality of HOBBYWING services and products
but simplifies the task.

Applicable to all or any Weather Conditions

The waterproof and dust-proof design enables the QUICRUN WP-1625 Brushed to be used generally in most
climate without problem of harm caused on ESC
from water or dirt.

Tall Reliability & Durability

Reliable equipment along with advanced pc software technology allows
the QUICRUN WP-1625 Brushed not to just provide high energy production but
additionally overload safety of ESC circuit.

Product Specification

Type

• Scale : 1/16^th、1/18^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

Specifications

• Cont./Peak Present : 25A/100A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC manufacturing : Linear Mode:6V/1A

Wires & Connectors

• Input cables : Red-18AWG-75mm*1/Black-18AWG-75mm*1
• Output cables : B lue-18AWG-75mm*1/Yellow-18AWG-75mm*1
• Input Connectors : Small-sized TAMIYA Connector
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : No
• Voltage Range : No
• Powered by : No

ESC Programing via

• SET Button on ESC : maybe not Supported
• LED Program Box : not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : maybe not Supported
• Program Port : Jumper Cap

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 34.0x24.0x14.0mm
• Weight : 24g

Applications

• Motors : Brushed Motors
• Vehicles : 1/16^th, 1/18^th Touring Cars/Buggies/Monster Trucks
• KV Rating/T Count : 2S LiPo: RPM≤30000
  3S LiPo: RPM≤20000
  (280/370/380 Size engines)
