HOBBYWING QuicRun WP 860 Dual Brushed - 30105400  [HW-30105400]

Effortless Operation

This ESC is extremely made for brand new novices and intermediate modelers;
it not only holds forward the outstanding quality of HOBBYWING items
but simplifies the process.

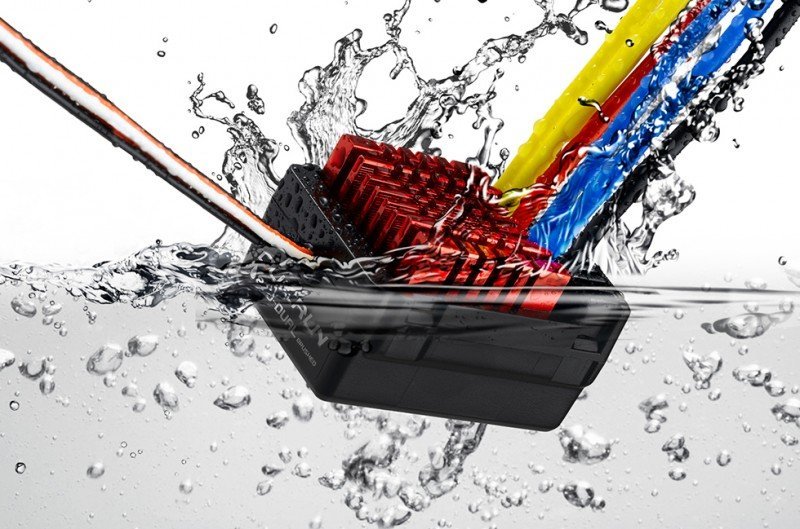

Applicable to all or any or any or any Weather Conditions

The waterproof and dust-proof design allows the QUICRUN WP-860-Dual-Brushed
become found in most weather conditions without the problem of harm triggered
on ESC from water or dirt.

Built-in BEC

The integrated switch mode BEC with a maximum production of 6Amp and voltage of 5V
understand this to ESC appropriate for different servos.

A simple task to Use

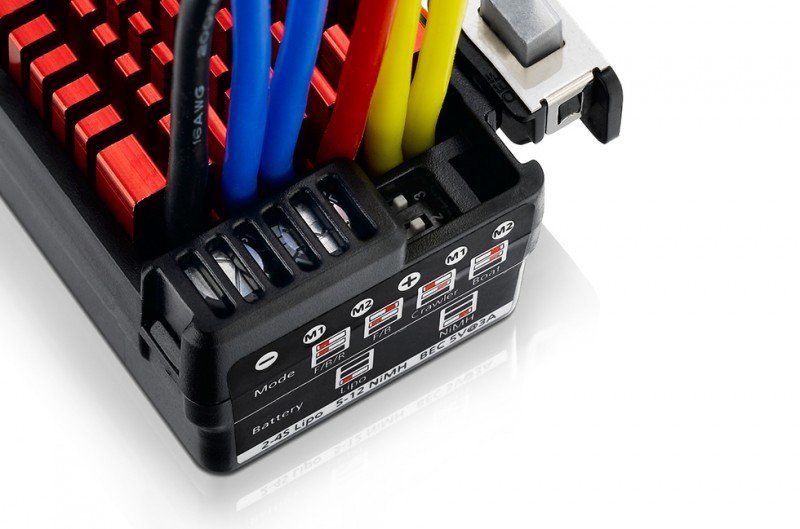

This ESC features automobile throttle calibration and parameter environment
via jump caps is easy-to-use, especially relevant to unique novices.

Double Output

This ESC can drive two brushed engines as well.
It’s cost-effective and relevant to low-speed crawlers and tanks which run two machines

Item Specification

Type

• Scale : 1/8^th、1/10^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

Specifications

• Cont./Peak Current : 60A/360A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC manufacturing : change Mode:5V/3A

Wires & Connectors

• Input cables : Red-16AWG-150mm*2/Black-16AWG-150mm*1
• Output cables : B lue-16AWG-100mm*2/Yellow-16AWG-100mm*2
• Input Connectors : No
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : 25.0x25.0x10.0mm
• Voltage Amount : 5-7.4V
• Powered by : operating on BEC

ESC Programing via

• SET Button on ESC : maybe not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : not Supported
• Program Port : Dip Switch

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 46.0x36.0x26.3mm
• Weight : 73g

Applications

• Motors : Brushed Motors
• Vehicles : 1/8^th, 1/10^th Touring Cars/Buggies/Trucks//Rock Crawlers
• KV Rating/T Count : 2S LiPo: T≥12T
  3S LiPo: T≥18T
  4S LiPo: T≥24T
  (540/550/775 Size engines)
