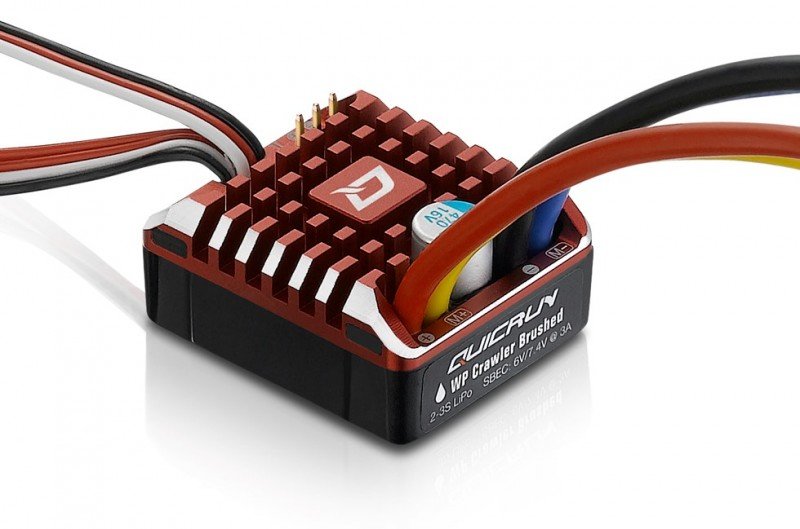

HOBBYWING QuicRun WP Crawler Brushed - 30112750  [HW-30112750]

Special Design for 1/10^th, 1/8^th Crawlers

The dependable gear in conjunction with effective computer software (features a selection of
programmable parameters like begin force, drag braking system price, and etc.)
produces a perfect power method to 1/10^th, 1/8^th rock crawlers.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology

The adjustable PWM regularity alongside advanced level DEO/freewheeling technology
guarantees users great throttle linearity and driving feel.

Highly relevant to any or all Weather Conditions

The waterproof and dust-proof design permits the WP-Crawler-Brushed
to be utilized in many weather conditions with no dilemma of
harm triggered in direction of ESC from water or debris.

Exemplary Braking Performance

Hobbywing's revolutionary, fine-tunable drag stopping system price and adjustable drag stopping system and stopping system force
somewhat enhance the brag stopping system and invite users to truly have the excellent braking performance.

Super Internal BEC

The integrated switch mode BEC with a maximum production of 6A and voltage
adjustable between 6V and 7.4V permits using various standard servos,
high voltage servos and also other peripherals.

15 Programmable Parameters

The WP-Crawler-Brushed, which features 15 programmable parameter services and products,
does connect with various cars and songs.

Individual Programming/Fan Port

The split PRG/FAN port on ESC can power another fan to maximise ac
performance or connect the ESC to a Light-emitting Diode system industry for ESC development.

a Light-emitting Diode Program Box is Included

A standard, committed Light-emitting Diode system industry (contained in the package) enables users to
prepare the WP-Crawler-Brushed effortlessly.

Item Specification

Type

• Scale : 1/8^th & 1/10^th
• Brushed/Brushless : Brushed
• Waterproof : Waterproof

Specifications

• Cont./Peak Present : 80A/400A
• Input Voltage : 2-3S Lipo/5-9 Cell NiMH
• BEC production : change  Mode: 6V/7.4V@3A

Wires & Connectors

• Input Wires : Red-14AWG-200mm*1 / Black-14AWG-200mm*1
• Output cables : Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
• Input Connectors : XT60 Connectors
• Output Connectors : No

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : not Supported
• WiFi Module : perhaps not Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 36.2x31.6x17.0mm
• Weight : 58.5g (w/Wires)

Applications

• Motors : Brushed engine (540/550/775 size machines)
• Vehicles : 1/8^th,1/10^th Rock Crawlers
• KV Rating/T Count : Brushed engine limitation with 2S LiPo/6S NiMH: ≥10T or RPM<[email protected]
  Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<[email protected]
