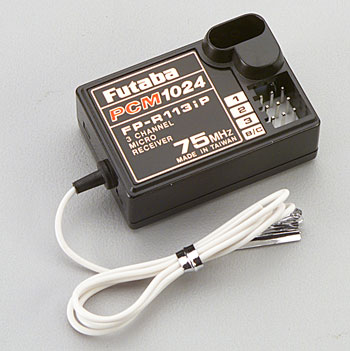

this will be a R113iP 3-Channel 27MHz/ 40MHz/ 75Mhz Micro PCM1024 Receiver "Without Crystal".
QUALITIES: Narrow-band spacing and superior sign filtering combined to
provide excessively clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who wants to utilize one radio transmitter
to run various models.
INCLUDES: One R113IP 3-Channel 27MHz/ 40MHz/ 75Mhz Micro PCM1024 Receiver
REQUIRES: One FUTL64** Receiver Crystal Or a Futaba solitary change crystal particularly FUTL52**
SPECS: Narrow Band: 20kHz
Intermediate regularity: 455kHz
Power demands: 4.8 to 6.0 volts (distributed to servos)
Current Drain: 18mA
Length: 1.69" (42.7mm)
Width: 1.13" (28.7mm)
Height: 0.63" (16.0mm)
fat: 0.74oz (21g)
OPINIONS: the transmitter/receiver crystal set,
Original Notice about Frequency Changes-
*72MHz- minimal musical company networks 11 to 35; tall band sites 36 to 60.
Receiver crystal stations (11-35 or 36-60) Within Each Band
Can stay Changed, and don't Require a retuning with this receiver.
*72MHz Regularity Band (low or high) the receiver can't Be
Changed from low to high musical company, OR from high to low musical organization without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz Frequency Bands cannot under any
circumstances be interchanged collectively. The receiver Must
be presented for retuning towards appropriate musical company.
*50MHz, 27MHz and 75MHz receiver crystals is changed anywhere
within this bands. There are not any high or low bands such
as the 72MHz musical organization has.
*Transmitter Crystals can't be changed to some other channel except
by a certified solution center. Its against FCC rules, and
illegal the consumer to improve a frequency determining component
of a transmitter. If radio isn't retuned, maybe it is a hazard
spectators, modelers or house, and void AMA coverage.
*Check utilising the local R/C club the frequencies found in your neighborhood.
