Futaba R114F 4-Channel FM Rx 40MHz High with Short Crystal  [R114F]

Futaba (#R114F) - Futaba 4-Channel FM Rx 40MHz high with brief Crystal

RECORDS FROM OUR TECH DEPARTMENT

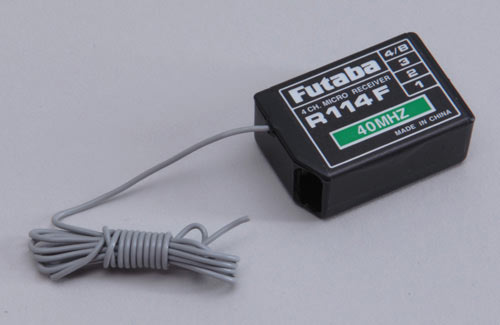

This is a R114F 4-Channel HI 40MHz FM Receiver "With Crystal" from Futaba.

FEATURES:

Narrow-band spacing and superior indication filtering combined to
provide exceptionally clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who wants to make use of an individual radio transmitter
to run several different models.
Perfect for Park or gradually Flyers.
Range of around 650 foot (200m)

SPECS: Narrow Band: 20kHz
Power Requirements: 4.8 to 6.0 volts (distributed to servos)
Current Drain: 10mA
Length: 1-1/4" (31.75mm)
Width: 1/2" (.02mm)
Height: 7/8" (.28mm)
fat: 0.35 oz (9.9g)

COMMENTARY: Special Notice about Frequency Changes-
*72MHz- minimal musical organization channels 11 to 35; High musical company networks 36 to 60.
Receiver crystal channels (11-35 or 36-60) Within Each Band
Can stay Changed, plus don't require a retuning the receiver.
*72MHz Regularity Band (low or high) the receiver cannot Be
Changed from low to high musical organization, OR from high to low musical organization without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz regularity Bands cannot under any
circumstances be interchanged together. The receiver Must
be presented for retuning toward appropriate musical company.
*50MHz, 27MHz and 75MHz receiver crystals is changed anywhere
within the respective bands. You will find no real high or low bands such
as the 72MHz musical organization has.
*Transmitter Crystals can't be changed to a different channel except
by an avowed solution center. It is against FCC tips, and
illegal the particular to enhance a frequency determining component
of a transmitter. If radio just isn't retuned, it may be a hazard
spectators, modelers or property, and void AMA protection.
*Check utilizing the local R/C club the frequencies used in your neighborhood.
