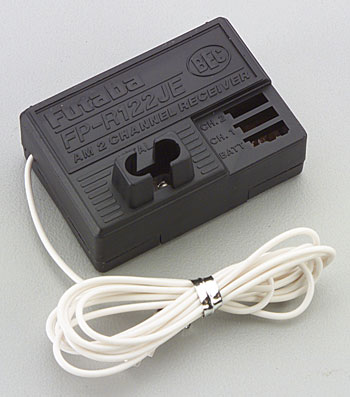

Futaba R122JE 2-Channel AM 27MHz w/o Crystal  [R122JE]

Futaba (#R122JE) - Futaba R122JE 2-Channel AM 27MHz with Crystal

NOTES FROM the TECH DEPARTMENT
This is a R122JE 2 Channel 27MHz is always Receiver "With Crystal" from Futaba.
This is a BEC Rx

QUALITIES: Narrow-band spacing and superior sign filtering combine to
provide extremely clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who wants to make use of an individual radio transmitter
to run a variety of models.

INCLUDES: One R122JE 2-Channel 27MHz will always be Receiver

SPECS: Narrow Band: 20kHz
Intermediate regularity: 455kHz
Power requirements: 4.8 to 8.4 volts
Current Drain: 30mA (at 4.8 volt/no signal)
Length: 1.82" (46.2mm)
Width: 1.31" (33.3mm)
Height: 0.67" (17.3mm)
fat: 0.59oz (16.6g)

RESPONSES:

Unique Notice about Frequency Changes-
*72MHz- Low musical company businesses 11 to 35; tall musical company systems 36 to 60.
Receiver crystal channels (11-35 or 36-60) Within Each Band
Can stay Changed, and don't Require a retuning using this receiver.
*72MHz Regularity Band (low or high) for the receiver can't Be
Changed from low to high musical company, OR from high to low musical organization without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz regularity Bands can not under any
circumstances be interchanged collectively. The receiver Must
be submitted for retuning toward appropriate musical organization.
*50MHz, 27MHz and 75MHz receiver crystals could be changed anywhere
within the bands. You will find no high or low bands such
as the 72MHz musical company has.
*Transmitter Crystals may not be changed to a different channel except
by an official solution center. It is actually against FCC regulations, and
illegal for the individual to change a frequency determining component
of a transmitter. In case radio seriously isn't retuned, it could be a hazard
spectators, modelers or home, and void AMA insurance policy.
*Check because of the regional R/C club for the frequencies present town.
