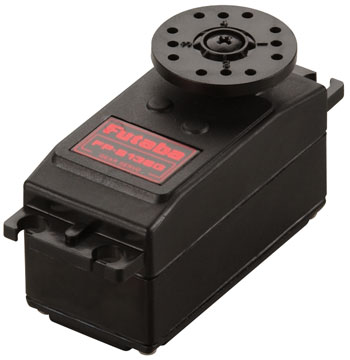

Futaba S136G Compact Retract Servo for Scale Models [S136G]

Price:

£32.65

Brand:

Futaba

Model:

S136G

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the

R/C Models - System - Servo - Low Profile Servos

Precision retract servo Futaba S136G for secure gearing

The Futaba S136G Compact Retract Servo is aimed at flyers needing a compact, robust actuator for mechanical landing gear. Its small footprint fits into confined spaces while the 180 degree movement secures gear at both end points for stable operation.

Futaba S136G feature highlights

Compact Design: Slim profile for neat installation in wings and bays.
Metal Gear Set: Durable metal gears reduce the risk of stripping under load.
Two Ball Bearings: Ensures smooth rotation and less play over time.
3-Pole Motor: Reliable drive for consistent deployment.
180-Degree Travel: Full-lock motion for confident gear positioning.

Specifications

Length: 46mm
Width: 23mm
Height: 25mm
Torque: 92 oz/in @ 4.8V (6.6 kg/cm @ 4.8V)
Speed: .58 seconds/60 degrees @ 4.8V
Weight: 42g

An excellent option for scale models with mechanical retracts, the Futaba S136G focuses on compact installation and secure gear locking for reliable flights.

Can I pair this servo with a standard receiver without a governor?

Yes, it works with normal receiver outputs. Ensure your transmitter end points match the full-lock positions needed for your retracts.

Are the ball bearings user serviceable?

Bearings are sealed and typically maintenance free, but if wear appears the unit should be serviced or replaced to maintain smooth travel.

What checks should I perform before flight?

Verify full travel to both locks, check linkages are tight and free of slop, and confirm the servo mounts are secure to avoid in-flight gear issues.
