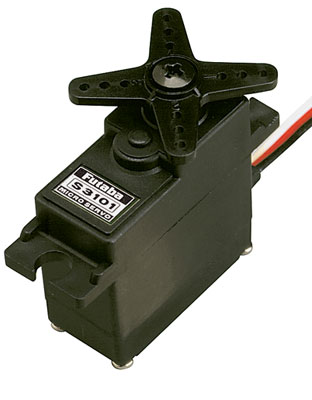

Futaba S3101 Servo Micro Precision  [S3101]

this is actually the Futaba S3101 Micro servo that replaces the S133.
TThis servo is utilized for aircraft or where the littlest servos are expected.

This servo can cause high-current draw from your own batteries.
If making use of NiMH or Li-Po batteries, cause them to capable
of delivering sufficient Amps.

It's nylon gears 3-pole engine, and an oilite bushing.
Futaba products have actually actually a 1-Year Warranty against defects w/material & workmanship

SPECS Speed: .18sec/60 deg @ 4.8V - .14sec/60 deg @ 6V
Torque: 35 oz/in @ 4.8V - 43 oz/in @ 6V
2.5 kg/cm @ 4.8V - 3.1 kg/cm @ 6V
Length: 1.1" (28mm)
Width: 0.5" (13mm)
Height: 1.2" (30mm)
fat: 0.6 ounce (17 grams)
Connector: "J" kind with about 5" cable

INCLUDES: One S3101 micro servo with pre-installed "x" servo horn
Two metal eyelets
Two black colored colored round rubber grommets
Two servo mount screws
Two servo horns (1 round, 1 "X" and 1 straight)
NOTE: for additional servo horns utilize FUTM1985

REVIEWS: ins (millimeters) .54 (13.6) flange to
Side view: 1.17 (29.7) __?-------�__ top of
bottom to top ? ? shaft
of situation (perhaps not ? ? .85 (21.5) flange to
output shaft) �________? base of
1.1(28) servo

Top view: we ?-----------?
.51(13) ) * (
we ?-----------?
1.38(35)
center-to-center of holes
6/6/95axy
9-15-00 UPDATE
The latest shipment for the sevos are actually coming with white servo arms, which
some customers may mistake for Hitec. They are perhaps not Hitec. They appear like they
will fit, nevertheless the consumer operates the likelihood of stripping the output shaft if
they you will need to utilize them on Hitec.
