Futaba S3103 Servo Micro Mini  [S3103]

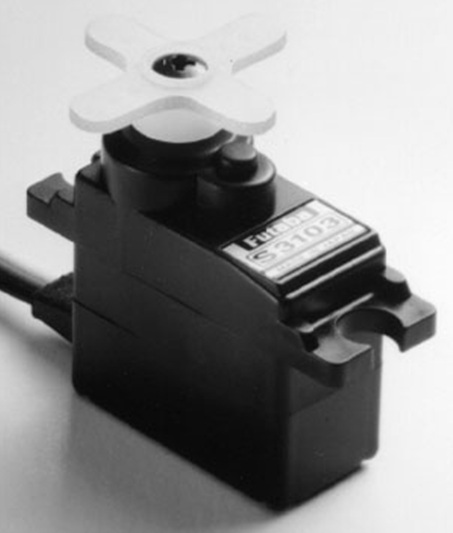

This is actually the S3103 Micro Mini Precision Servo
Designed to be used with Futaba broadcast Control Systems.
This Servo Takes the location concerning the S133 Servo and possesses Less Torque.

This servo trigger high-current draw from your batteries.
If using NiMH or Li-Po batteries, encourage them to capable
of delivering adequate Amps.

QUALITIES: Tiny Compact Design for Small Electric Engine Airplanes.
3-pole motor

INCLUDES: One S3103 Micro Mini Servo
One Servo Accessory Pack (Horn, Grommets, Screws, Bushings) FUTM23500

SPECS: Speed: .11 sec/60 deg @ 4.8V - .09 sec/60 deg @ 6V
Torque: 17 oz/in @ 4.8V - 21 oz/in @ 6V
1.2 kg/cm @ 4.8V - 1.5 kg/cm @ 6V
Length: 23mm (.9")
Width: 10mm (.4")
Height: 20mm (.8")
Weight: 9.5g (.3oz)

OPINIONS: The S3103 Servo may possibly not be found in combination with Gasoline engine Airplanes and
with big Gliders as well as other variations that require Torque.
The Using a sizable Load at a high Power Supply Voltage Will Shorten-
the use life time. (4.8V Recommended)
The Accessory Servo Horn is made for utilize employing this Servo just.
Conventional Servo Horns Might Not Be Used. Always use the Special
Servo Horn.
ir/jl
9-15-00 UPDATE
The latest distribution of this sevos are actually coming with white servo hands, which
some clients may mistake for Hitec. They're maybe not Hitec. They appear like they
will fit, nevertheless the consumer operates the chances of stripping the manufacturing shaft if
they make an effort to use them on Hitec.
