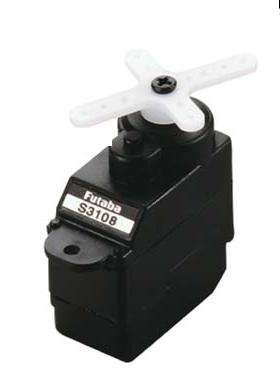

Futaba S3108 Micro Servo  [S3108]

this is actually the S3108 Micro Servo from Futaba servo, that is helpful for R/C park flyer airplanes.

This servo can create high-current draw from your own batteries.
If utilizing NiMH or Li-Po batteries, cause them to with the capacity of delivering sufficient Amps.

FEATURES:
Delivers exceptional torque and cost due to its small size and lightweight
Unique four point micro servo horn
exceptionally lightweight, perfect for small planes and park leaflets
can be utilized for elevators, ailerons and rudders
12 months restricted warranty

INCLUDES:
One S3108 Micro Servo with Futaba J male connector, servo horn, and guarantee sheet

REQUIRES: Servo mounting screws (FUTM2350), establishing in model

SPECS:
Speed: 0.12 sec/60 deg @ 4.8V
Torque: 17 oz/in @ 4.8V
Measurements: Length: .9" (21.8mm)
Height: 0.8" (19.8mm)
Weight: 0.27 ounce (7.6 grms)
Servo horn size at longest point: 0.90" (23mm)
Servo horn size at quickest point: 0.62" (16mm)
Connector: Male "J" kind with approx. 5" (126mm) cable

OPINIONS:
This servo may not be coupled with gas machines or large/middle scale gliders or other models that are looking torque. Usage of 6.0V perhaps not suggested as this will reduce servo life.

This servo has the standard Futaba J connector.If requiring the micro connector and individual would purchase FUTM0700.
Micro Extension is FUTM4508.
For replacement horn set utilize component # HRCM5708 (per jpg)
No gear set available, per FUTABA.
