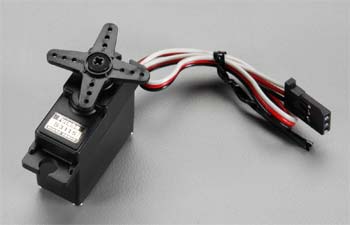

Futaba S3115 Micro Precision Servo  [S3115]

This is actually the Futaba S3115 Micro Tall Torque Servo. It replaces the Futaba S3101 Servo.
This servo will make high-current draw from your batteries if utilizing NiMH or LiPo batteries, get them to able to delivering sufficient amps.

QUALITIES:
Ideal for electric planes and little electric helis
Nylon gears
twelve months warranty


INCLUDES:
Futaba S3115 Micro Tall Torque Servo
One 1" (25.4mm) 4 arm servo horn (setup on servo)
One 1.5" (39mm) 4 supply servo horn
One 1.75" (45mm) right servo horn
One 1.4" (35mm) diameter circular servo horn
Two eyelets
Two rubber grommets
Two 2x12mm washer brain self threading screws (phillips mind)


REQUIRES:
Installing in aircraft and linking to receiver


SPECS(4.8V):
Torque: 39 oz-in (2.8 kg/cm)
Speed: 0.15 sec/60�X
dimensions: 1.1 x 0.5 x 1.2" (28 x 13 x 30mm)
weight: 0.60oz (17g)
Lead Length: 6.5" (165mm)


OPINIONS:
avoid S3115 servos with gasoline or high energy motor models, big gliders, or other models that want high torque
using supply voltage above 4.8V or using high load on servo will shorten residing. Always utilize the servo horn specially designed for this servo.
Do not use mainstream servo horns.
Excessive force or shock towards servo horn may damage the ultra mini accuracy gears in servo.
For replacement gears utilize component number FUTM3404
